Product Overview
Dynamic Thermal Guard
This feature constantly monitors and works to maintain ideal temperatures to protect the integrity of your data and safeguard from overheating. When temperatures rise above an optimal threshold, the Dynamic Thermal Guard automatically throttles them down to protect data while maintaining responsiveness.
Technical Specifications
Type

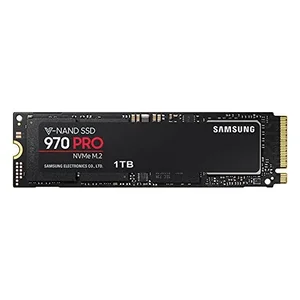

Series: 970 PRO
Usage Application: Client PCs
Interface: PCIe Gen 3.0 x4, NVMe 1.3 Storage
Capacity: 1TB Features
Sequential Read Speed: Up to 3,500 MB/s
Sequential Write Speed: Up to 2,700 MB/s
Random Read Speed:
Random Read (QD32): 500,000 IOPS
Random Read (QD1): 15,000 IOPS
Random Write Speed:
Random Write (QD32): 500,000 IOPS
Random Write (QD1): 55,000 IOPS
Controller: Samsung Phoenix Controller
NAND Flash: Samsung V-NAND 2-bit MLC
Cache Memory: Samsung 1GB Low Power DDR4 SDRAM
Trim Support: Yes
Security:
AES 256-bit Encryption (Class 0)
TCG/Opal V2.0
IEEE1667 (Encrypted drive)
S.M.A.R.T. Support: Yes
GC (Garbage Collection): Auto Garbage Collection Algorithm
Device Sleep Mode Support: Yes General
Power Consumption (W):
Actual power consumption may vary depending on system hardware and configuration
Average: 5.2W / Maximum: 8.5W (Burst mode) / Idle: 30mW (max)
Voltage: 3.3 V +/- 5 % Allowable voltage
Reliability (MTBF): 1.5 Million Hours (MTBF) Environmental Specs
Operating Temperature: 0 - 70 o Operating Temperature
Shock: 1,500 G and 0.5 ms (Half sine) Form Factor
Product: M.2 (2280) Software
Management SW: Magician Software for SSD management Item Dimension (L"xW"xH")
6 x 4 x 1
Weight
1 lb
Warranty Information
5 Years or 1200 TBW
