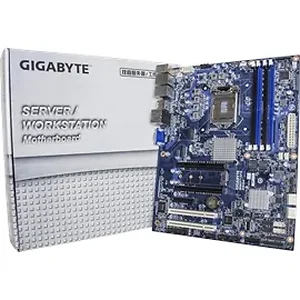

Gigabyte MW31-SP0 ATX Motherboard for Intel Xeon E3-1200v5

Special Order
Ships in 1-2 weeks
Condition: New

$379.00  $511.65
Free Shipping for this Item

Product Overview

The Gigabyte MW31-SP0 is a robust ATX motherboard designed for the Intel Xeon E3-1200 V5 processor family, offering high performance and reliability for server and workstation environments.

Equipped with advanced features such as dual-channel DDR4 memory support, multiple expansion slots, and sophisticated RAID configurations, this motherboard ensures effective data management and optimal performance. The integrated graphics capability allows for dual display configurations, further enhancing its versatility.

Designed for extensive connectivity, it includes various ports and headers for USB, audio, and network connections, making it an essential choice for building efficient computing systems.

Technical Specifications

  • Form Factor: ATX 305W x 244D (mm)
  • CPU Support: Supports Intel Xeon processor E3-1200 V5, 6th Gen Intel Core i3, Celeron, and Pentium processors
  • Socket: 1 x LGA 1151
  • Chipset: Intel C236
  • Memory: 4 x DIMM slots; Dual channel memory architecture; Supports 1.2V DDR4 memory; ECC and non-ECC modules supported; UDIMM supported up to 16GB per module; Supported speeds: 1866/2133 MHz
  • LAN: 2 x GbE LAN ports (Intel I210 + I219LM)
  • Video: Integrated Graphics Processor; 1 x DisplayPort; 1 x HDMI port; Maximum shared memory of 512 MB
  • Audio: Realtek ALC887 controller; Supports 2/4/5.1/7.1 channel configurations
  • SATA: 4 x SATA III 6Gb/s ports; 4 x additional ports (Marvell 9230 controller)
  • RAID: Intel and Marvell SATA RAID support
  • Expansion Slots: 2 x PCIe x16; 1 x PCIe x4; 1 x mezzanine card slot; 2 x PCI slots; 1 x M.2 slot
  • Rear I/O: 4 x USB 3.0; 2 x USB 2.0; 1 x PS/2; 1 x HDMI; 1 x DisplayPort; 1 x Serial; 2 x RJ45; 5 x Audio jacks
  • OS Supported: Windows 7 Ultimate SP1, 8, 8.1, and 10 (x64)
  • Warranty: 1 year

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • GIGABYTE
  • MW31-SP0
  • 813567021957
  • New
  • 4 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Gigabyte • Part #: MW31-SP0 • UPC: 813567021957
