MW12 (3-PACK) - Tenda Technology Tenda Network NOVA MW12(3-PACK) AC2100 Tri-band Whole Home Mesh WiFi System Retail

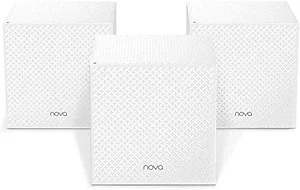

The MW12 is a whole home Mesh WiFi system designed for medium to large households with a high speed broadband service. Powered by Tenda Mesh technology, it creates a distributed network with several nodes throughout your home. A 3-pack of MW12 is able to cover up to 500 m2 / 6000 sq.ft. AC2100 tri-band design and full gigabit ports support and give full play to your high speed broadband service. It carries a 900 MHz strong CPU and 256 MB large memory, and is able to handle more devices on your network. All terminals can enjoy high-speed tri-band WiFi at the same time, indicating low latency for internet games, smooth streaming of 4K videos and VR HD applications. It features easy and wire-free installation and allows both auto-networking and manual addition. With seamless roaming around the house, the MW12 creates a high-speed and intelligent Mesh WiFi system throughout your home.

Tri-band AC2100 Mesh for Best Internet Experience

Tri-band AC2100 Mesh solution exploits the full potential of your Fiber access. Three bands(2.4GHz, 5GHz-1, 5GHz-2) are used as backhaul to eliminate the lag while multiple devices streaming at the same time.

Built-in Signal Enhancement Module

It adopts 5GHz dedicated powerful WLAN full-featured front-end module, equipped with integrated signal amplifier. The concentrated signal makes sure stronger and more stable Multi-story home WiFi coverage. You can enjoy best signal in any corner.

Whole Home Seamless Roaming

MW12 units work together under one unified network supported by 802.11k/v/r protocal, always connect your devices with the best performance node while the devices freely moving around in your house.

Standard and Protocol
IEEE802.11a/b/g/n/ac
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Interface
3 x 10/100/1000Mbps RJ45 ports per node
Antenna
4 x Internal antenna
Button
1 x Reset Button
LED indicator
1 x Tri-color LED Indicator(Green,Yellow,Red)
Power
Input: 100-240V-50/60Hz, 0.6A
Output: 12V1.5A
Wireless Standards
IEEE802.11a/b/g/n/ac (WiFi 5 wave 2)
Wireless roaming
Comply with IEEE802.11k/v/r
Mesh network Standard
IEEE802.11s
Rate
2.4GHz: 300Mbps
5GHz-1: 867Mbps
5GHz-2: 867Mbps(dedicated backhaul)
Frequency
2.4-2.4835GHz
5.15-5.25GHz
5.47-5.725GHz (for EU countries)
5.725-5.85GHz
Basic Features
SSID Broadcast
Beam Forming
MU-MIMO
AP Steering
Band Steering
Wireless Security
WPA-PSK/WPA2-PSK(default)
Operating mode
Router Mode,Bridge Mode
Internet Connection Type
PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP Server
DHCP Server, DHCP Client List
Virtual Server
Port Forwarding, DMZ Host, UPnP
Parental Control
Client Filter
URL Filter
Firewall
Forbid TCP/UDP flood attack
VPN(PPTP/L2TP/IPsec )pass through
Special Features
Dedicated Backhaul
Turbo Backhaul Mode
Fast Roaming
Smart QoS (Gaming, Video and Audio, Download)
