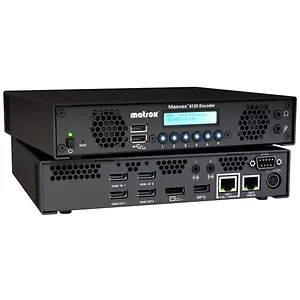

Technical Specifications
Connectivity
Form Factor
Standalone appliance Rack-mountable (1U dual-density)
Multi-Appliance Support
Yes
Supported Video Input Formats
2x HDMI (Type A)
Performance
Color Space Capture
RGB and YUV 8- and 10-bit support
Color space conversion support
Chroma Sub-Sampling
4:4:4 (8-bit)
4:2:2 (8-bit)
4:2:0 (8-bit and 10-bit)
4:0:0 (8-bit and 10-bit)
Video Input
2x HDMI (Type A) with audio support
Video Output/Pass-Through
2x HDMI (Type A) with audio support
Video Monitoring Output
1x DisplayPort 1.1
Audio Input
2x HDMI digital LPCM two-channel stereo audio
2x 3.5 mm analog stereo audio
1x 3.5 mm stereo mic in
Audio Output
2x HDMI digital LPCM two-channel stereo audio
1x 3.5 mm headphones out
RS-232
1x - for IP to RS-232 control
USB Support
2x USB 2.0 (front)
1x USB 3.0 (back)
Maximum Capture Resolution
2x 3840x2160 at 60Hz or
2x 4096x2160 at 60Hz
2x 3840x2160 at 30Hz or
2x 4096x2160 at 30Hz
Support for Custom Resolutions
Project dependent please contact Matrox for details
Encoding
Video Encoding Formats (Codecs)
H.264/MPEG-4 Part 10 (AVC)
Encoding Capability (Maximum and Other Examples)
at 4:2:0
2x 3840x2160 at 60Hz
1x 4096x2160 at 60Hz
4x 3840x2160 at 30Hz
3x 4096x2160 at 30Hz
4x 1920x1080 at 60Hz
8x 1920x1080 at 60Hz
16x 1920x1080 at 30Hz
at 4:4:4
1x 3840x2160 at 30Hz
1x 4096x2160 at 30Hz
2x 1920x1080 at 60Hz
3x 1920x1080 at 60Hz
6x 1920x1080 at 30Hz
Encoding Profiles
Baseline (BP)
Main (MP)
High (HiP)
High 10 (Hi10P)
High 4:2:2 (Hi422P)
High 4:4:4 predictive profile separate plane (Hi444PP)
CAVLC 4:4:4 intra (44)
Encoding Level
Up to 5.2
Bitrate Range
50 Kbps to 120 Mbps
15 Mbps (default)
Rate Control
CBR
VBR
Favor quality (optimize for desktop or latency)
Adjustable GOP size
Audio Encoding Format (Codec)
MPEG-4 AAC-LC/HEv1/HEv2
Audio Sample Frequency
32 kHz
44.1 kHz
48 kHz
Audio Bitrates
Up to 576 Kbps (AAC-LC)
Up to 288 Kbps (AAC-HEv1)
Up to 144 Kbps (AAC-HEv2)
Video Compositing
Yes, fixed formats including Picture-in-Picture (PiP), Picture-by-Picture (PbP), quadrant
Scaling
Yes
Recording
Recording File Format
MP4
Filename
Customizable prefix (optional)
Timestamp
Automatic in filename
Recording Programmability
Start date and time
Duration
Maximum file length
File frequency
Recording Locations
Shared network drive or NAS, Local USB ports for USB flash drive and external hard drive
2x USB 2.0 (front) and 1x USB 3.0 (back)
Network
Network Connector
2x RJ45 with status LED indicators: 1x control and stream, and 1x stream only
Network Standard
100/1,000 base-T Ethernet
Auto speed
Half/full duplex
Unicast, multi-unicast, multicast
Command and Control
HTTPS over TCP
UPnP (discovery)
Streaming Protocols
RTSP (TCP), RTCP and RTP (UDP) - all required
RTP/RTCP (both required) over UDP
SRT over UDP
RTMP
MPEG2.TS over UDP
IP Addressing
IPv4 support
DHCP (default) and static IP address support
Physical
Noise Emission
25 dB at full stream/record capacity
Power Supply
100-240 VAC in, 12 VDC out, 60W DIN4 locking power connector
Power Cords Included
US, EU, UK, Aus/NZ
Environmental
Operating Temperature Range
0 to 45 degrees Celsius
Storage Temperature Range
-40 to 70 degrees Celsius
Operating Humidity Range
20% to 80% non-condensing
Storage Humidity Range
10% to 90% non-condensing
Operating Altitude Range
650 hPa (3,580 m) to 1,013 hPa (0 m)
Storage Altitude Range
192 hPa (12,000 m) to 1,020 hPa (-50 m)
Maximum Power Consumption
45W
EMC/EMI Device Class
Class A
EMC/EMI Certifications
FCC (US)
CE (EU)
RCM (Aus/NZ)
VCCI (Japan)
KC (Korea)
ICES-3 (Canada)
Environmental Certifications
EU RoHS
China RoHS
REACH
WEEE
Software
PowerStream Plus (free download)
Compatible with Maevex 5100 Series and Maevex 6100 Series
Network discovery
Multi-encoding and recording management
Multi-protocol management
Frame rate management
Resolution control
Administrator and user credential management
Scaling management
SNMP support
PowerStream Plus API for Windows and Linux
Full-access to entire feature set via API
.NET 4.5.1 or higher, standalone library and Mono 5.2 or higher for Linux
REST API
Maevex 6100 Series REST API
Available for lower-level development
Supported Operating Systems
-Microsoft Windows 10 (64-bit)
- Windows Server 2016 R2
- Windows 7 (32-bit, 64-bit)
- Windows Server 2008 R2
Accessories (Sold Separately)
Optional Hardware
Rackmount Kit (RMK-19TR-A)
Item Dimension (L"xW"xH")
15 x 11 x 7
Weight
9.00 LB
Warranty Information
2 year from Matrox Invoice Date
