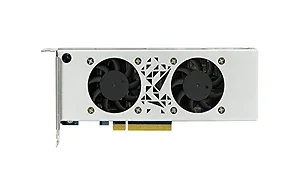

MUSTANG-F100-A10-R10 - Qnap PCIE FPGA HIGHEST PERFORMANCE

Main FPGA
Intel Arria 10 GX1150 FPGA Operating Systems
PC: Ubuntu 16.04.3 LTS 64-bit, CentOS 7.4 64-bit, Windows 10 (More OS are coming soon)
NAS: QTS (Installing Mustang Card User Driver in the QTS App Center is required.) Voltage Regulator and Power Supply
Intel Enpirion Power Solutions Memory
8G on board DDR4 Dataplane Interface
PCI Express x8
Compliant with PCI Express Specification V3.0 Power Consumption (W)
<60W Operating Temperature and Relative Humidity
5^oC-60^oC (ambient temperature), 5% - 90% Cooling
Active fan: (50 x 50 x 10 mm) x 2 Power Connector
Preserved PCIe 6-pin 12V external power Dip Switch/LED indicator
Up to 8 cards can be supported with operating systems other than QTS QNAP TS-2888X NAS supports up to 4 cards. Please assign a card ID number (from 0 to 7) to the Mustang-F100 by using rotary switch manually. The card ID number assigned here will be shown on the LED display of the card after power-up. Item Dimension (L"xW"xH")
NA

Weight
0.01 lbs

Warranty Information
2 Years
