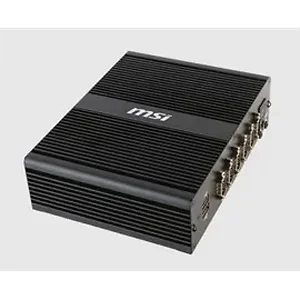

Msi MS-9A69 J1900 BB System MS-9A69 J1900 BB Celeron J1900 Bay Trail Retail

CPU
Intel Celeron Processor BayTrail J1900, Quad Core

Frequency
2 GHz

L2 Cache
2MB

CPU Type
BGA

Chipset
N/A

BIOS
AMI

Technology
Single-channel DDR3L 1333 MHz

Max. Capacity
Up to 8GB

Socket
1 x 204-pin SO-DIMM

Controller
Intel HD Graphics

Graphic Memory
Shared system memory up to 1.7 GB SDRAM

Multiple Display
2 Independent Displays

Display Interface
VGA up to 2560 x 1600
HDMI up to 1920 x 1080
LVDS up to 1920 x 1200 (optional)

Ethernet Controller
2 x Intel I210-AT GbE LAN

Audio Controller
Realtek ALC887 HD Audio Codec

Watchdog Timer
256-level Watchdog Timer

TPM
N/A

Expansion Slot
Mni-PCIe: 2 x Full-size (one w/ mSATA)

SATA
1 x 2.5" HDD/SSD

mSATA
1

RJ-45
4 (optional 2 x RJ-45 version available)

Audio
1 x Mic-in
1 x Line-out

USB
1 x USB 3.0
5 x USB 2.0

Serial
6 x COM ports
COM1: RS- 232/422/485, 0V/5V/12V
COM2-6: RS- 232, 0V/5V/12V

HDMI
1

LVDS
1 (optional)

DVI
N/A

DisplayPort
N/A

VGA
1

Antenna
2 openings reserved for antennas

Power Supply
DC Input: DC-in 12V/19V/24V
AC Input: N/A

Item Dimension (L"xW"xH")
9 x 7 x 12

Weight
5 lb

Warranty Information
NA
