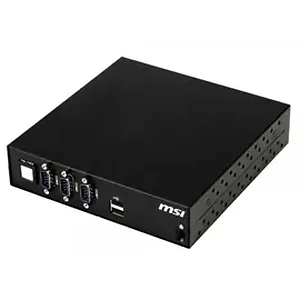

Msi MS-9A68 QM77 BB System MS-9A68 QM77 BB Socket G2 (989) QM77 Retail

CPU
3rd-gen Intel Core Mobile processor (optional)

CPU Type
rPGA 989 (Socket G2)

Chipset
Intel QM77/HM76 Express

BIOS
AMI UEFI

Technology
Dual-channel DDR3 SO-DIMMs 1600/1333/1066MHz (non-ECC, standard/low voltage)

Max. Capacity
Up to 16GB

Socket
2 x 204-pin SO-DIMM

Graphic Controller
Intel HD Graphics

Display Mode
2 independent displays supported (SNB CPU only)
3 independent displays supported (IVB CPU only)

Ethernet Controller
1 x Intel 82579 PHY LAN with iAMT 8.0 supported
1 x Intel I210-AT PCIe LAN

Audio Controller
Realtek ALC887 HD Audio Codec

Watchdog Timer
255-level Watchdog Timer

Smart Fan
Yes

TPM
N/A

Expansion Slot
PCIe x 16 : N/A
PCI e x 4: N/A
PCI e x 1: N/A
Mni-PCIe: 2 (one with SIM holder)

SATA
2 x SATA 2.0

mSATA
2 (shared with Mini-PCIe slots)

CFast
N/A

CompactFlash
N/A

RJ-45
Front I/O: N/A
Rear I/O : 2

Audio
Front I/O: N/A
Rear I/O : 1 x Line-out, 1 x Line-in, 1 x Mic-in

USB
Front I/O: 2 x USB 2.0
Rear I/O : 4 x USB 2.0
2 x USB 3.0

Serial
Front I/O: 3 x COM ports (RS-232, 0V/5V/12V)
Rear I/O : 1 x COM port (RS-232, 0V/5V/12V)

Parallel
Front I/O: N/A
Rear I/O : N/A

PS/2
Front I/O: N/A
Rear I/O : 1 x PS/2 port for keyboard and mouse

HDMI
Front I/O: N/A
Rear I/O : N/A

DVI
Front I/O: N/A
Rear I/O : 1 (DVI-I)

VGA
Front I/O: N/A
Rear I/O : N/A

AntennaFront I/O: N/A
Rear I/O : 1 x RF SMA straight jack
