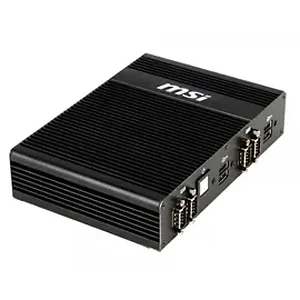

Msi MS-9A29 D2550 BB System MS-9A29 D2550 BB Atom D2550 NM10 Fanless BB Retail

CPU
Intel Atom D2550 processor

CPU Type
Onboard

Chipset
Intel NM10 Express

BIOS
AMI 32Mbit SPI

Technology
Single-channel DDR3 1066MHz (non-ECC)

Max. Capacity
Up to 4GB

Socket
1 x 204-pin SO-DIMM

Graphic Controller
Intel GMA3650 Graphics

Display Mode
Dual independent displays supported

Ethernet Controller
2 x Intel 82583V GbE LAN

Audio Controller
Realtek ALC887 HD Audio Codec

Watchdog Timer
255-level Watchdog Timer

Smart Fan
N/A

TPM
N/A

Expansion Slot
PCIe x 16 : N/A
PCI e x 4: N/A
PCI e x 1: N/A
Mni-PCIe: 2 (one with SIM holder)

SATA
1

mSATA
1

CFast
N/A

CompactFlash
N/A

RJ-45
Front I/O: N/A
Rear I/O : 2

Audio
Front I/O: N/A
Rear I/O : 1 x Line-out

USB
Front I/O: 4 x USB 2.0
Rear I/O : 2 x USB 2.0

Serial
Front I/O: 4 x COM ports
COM1: RS-232/422/485, COM2-4: RS-232
Rear I/O : N/A

Parallel
Front I/O: N/A
Rear I/O : N/A

PS/2
Front I/O: N/A
Rear I/O : N/A

HDMI
Front I/O: N/A
Rear I/O : 1

DVI
Front I/O: N/A
Rear I/O : N/A

VGA
Front I/O: N/A
Rear I/O : 1

AntennaFront I/O: N/A
Rear I/O : 2 holes reserved for antennas
