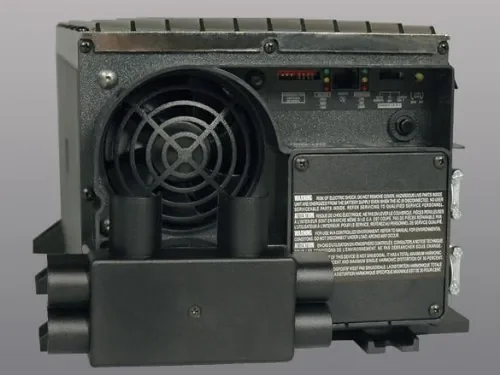

MRV2012UL - Tripp Lite 2000W RV Inverter / Charger 120V 12VDC with Auto Transfer Switching Hardwired UL458

Intended Application:
RV/Fleet/Alternative Power

OUTPUT
Frequency compatibility:60 Hz
Output watts:2000
Continuous output capacity (watts):2000
Peak output capacity (watts):4000
Output nominal voltage:120V
Output voltage regulation:LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120V AC (+/-5%). Output frequency regulation:60 Hz (+/- 0.3 Hz)
Overload protection:Includes 25A input breaker dedicated to the charging system
Outlet quantity / type:Hardwire INPUT
Nominal Input Voltage(s) Supported:120V AC
Recommended Electrical Service:DC INPUT: Requires 12V DC input source capable of delivering 190A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). For automotive applications, professional hardwire
Maximum input amps / watts:DC INPUT: Full continuous load - 190A at 12V DC. AC INPUT: 38 amps at 120V AC with full inverter and charger load (20A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output l
Input connection type:DC INPUT: Set of 2 DC terminal posts. AC INPUT: hardwire. User supplies cabling. 0 gauge or larger (see manual). AC INPUT: hardwire
Voltage compatibility (VAC):120
Voltage compatibility (VDC):12 BATTERY
Expandable battery runtime:Runtime is expandable with any number of user-supplied wet or gel type batteries
DC system voltage (VDC):12
Battery Pack Accessory (optional):98-121 sealed lead acid battery (optional)
Battery recharge rate:25A /100A (user-selectable) LEDS ALARMS and SWITCHES
Switches:3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. In AC uninterruptibl
Front panel LEDs:6 LEDs offer continuous status information on load (6 levels reported) and battery charge level (7 levels reported). See manual for sequences. LINE / BATTERY TRANSFER
Transfer time from line power to battery mode:16.6 ms (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications)
Low voltage transfer to battery power:In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user-adjustable to 85, 95, 105V - see manual)
High voltage transfer to battery power:In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 145V Item Dimension (L"xW"xH"):
21.5 x 15 x 13.5

Weight:
46.6 lb

Warranty Information:
NA
