MLX-D36M-A20PC-R1 - Cooler Master CoolerMaster Fan | Aztek Computers
29+Years
SKU: ES0Y8GN4ZL |  Mfg. Part: MLX-D36M-A20PC-R1  | UPC: 884102043505  |  0 Reviews  |     Share

MLX-D36M-A20PC-R1 - Cooler Master CoolerMaster Fan MLX-D36M-A20PC-R1 MasterLiquid ML360R RGB Intel AMD 4-Pin(PWM) Retail

Special Order
Ships in 1-2 weeks
Condition: New

$113.37  $153.05
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

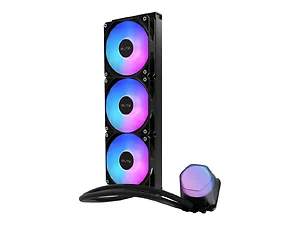

Take your PC build to the next level with the Elite Liquid 360. Designed with a striking hexagonal crystal-clear pump cover, this cooler combines standout aesthetics with top-tier performance. Enjoy hassle - free installation with a tool-free adjustable pump, pre-installed fans, and broad compatibility with both Intel and AMD sockets. Whether you're a first-time builder or an experienced enthusiast, the Elite Liquid series offers premium cooling at an exceptional value. Bullet points: Cool for R9 Ultra 7: Dual Chamber Ceramic Bearing Pump improved Low Friction, Low Noise and Fluid Dynamics directly to the CPU hotspot, for AMD R9 and Intel Ultra7. Unique Hexagon Design: Translucent hexagon pump cover and cap create unique frosted lighting, guaranteed to be a head turner. Daisy-Chained 120mm Fans: Pre-installed daisy-chain fan system simplifies wiring using only a single PWM connector to power all fans. Dynamic PWM Fan: A PWM 4-pin header allows adjustable fan speeds from 600 to 2,100 RPM to balance noise and airflow. Simplify Brackets: Pre-Install brackets simplify installation on AM5 and LGA 1851/1700 platforms. Frosted Blade Design: The frosted blade enhances the dispersion of aRGB lighting, creating a vibrant and customizable luminous effect. Ideal Tubing Length: The 400mm tubing provides flexibility, a hassle-free installation in various chassis configurations.

Expert Overview

The Cooler Master MLX-D36M-A20PC-R1 MasterLiquid ML360R RGB is a liquid cooling solution designed for business and IT environments requiring efficient thermal management for high-performance CPUs. This unit is suitable for systems utilizing Intel LGA 2066, 2011-v3, 2011, 1151, 1150, 1155, 1156, 1366, 775 sockets, as well as AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, and FM1 sockets. It features a dual-chamber ceramic bearing pump engineered to improve fluid dynamics and reduce noise. The system includes three pre-installed 120mm daisy-chained fans, simplifying wiring by using a single PWM connector. These fans operate at speeds from 650 to 2,000 RPM, providing a maximum airflow of 66.7 CFM. The 400mm tubing length offers installation flexibility in various chassis configurations. This cooler addresses the need for reliable CPU temperature regulation in demanding applications, including those with AMD R9 and Intel Ultra7 processors.

Technical Specifications

Product Name
MasterLiquid ML360R RGB
CPU Socket
Intel LGA 2066/ 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD Socket AM4 / AM3+ / AM3 / AM2+/ AM2 / FM2+ / FM2 / FM1
Radiator Material
Aluminum
Fan Quantity
3 PCS
Fan Speed
650 - 2000 RPM (PWM) +/- 10%
Fan Air Flow
66.7 CFM (Max)
Fan Air Pressure
2.34 mmH2O (Max)
Fan MTTF
160,000 hours
Fan Noise Level
6 - 30 dBA
Fan Connector
4-Pin (PWM)
Fan Rated Voltage
12 VDC
Pump MTTF
70,000 hours
Pump Noise Level
< 15 dBA
Pump Connector
3-Pin
Pump Rated Voltage
12 VDC
Item Dimension(L inchxW inchxH inch)
18 x 6 x 11
Weight
9.00 lb
Warranty Information
2 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Cooler Master
  • MLX-D36M-A20PC-R1
  • B07DV29GYN
  • 884102043505
  • New
  • 5.61 lbs
  • 16 X 5 X 5
  • Jun 09, 2026
  • Dec 16, 2018
Product Identifiers: Brand: Cooler Master • Part #: MLX-D36M-A20PC-R1 • UPC: 884102043505 • ASIN: B07DV29GYN • Category: Water Cooling

Frequently Asked Questions

What CPU sockets are compatible with this cooler?

This cooler is compatible with Intel LGA 2066, 2011-v3, 2011, 1151, 1150, 1155, 1156, 1366, 775 sockets, and AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 sockets.

What is included with the MasterLiquid ML360R RGB?

The product includes the liquid cooler with a 360mm aluminum radiator, three pre-installed 120mm daisy-chained fans, and pre-installed brackets for AM5 and LGA 1851/1700 platforms.

What is the fan speed range for the included fans?

The included 120mm fans have a dynamic PWM fan speed range of 650 to 2,000 RPM, with a tolerance of +/- 10%.

What is the length of the tubing?

The tubing length is 400mm, designed to provide flexibility for installation in various chassis configurations.
