Technical Specifications
20IN CLASS MEDIC MON LCD 4:3 20.1IN IPS PAN DICOM
LG ME20CR guarantees consistent image quality for the entire hospital and supports fast, positive medical judgment by complying with DICOM (Digital Imaging and Communications in Medicine), the international standard for medical digital images. Furthermore, it helps hospitals significantly in terms of overall operation and treatment environment.
*
MAIN SPECIFICATIONS

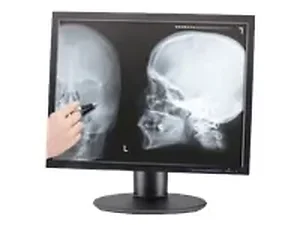

Product Description LG ME20CR - LCD display - TFT - 20.1"
Device Type LCD display / TFT active matrix
Color Black
Dimensions (WxDxH) 17.5 in x 10.6 in x 17.1 in - with stand
Weight 19.2 lbs
Diagonal Size 20.1"
Viewable Size 20.0"
Dot Pitch / Pixel Pitch 0.255 mm
Max Resolution 1600 x 1200
Display Positions Adjustments Height, pivot (rotation), swivel, tilt
Color Support 16.7 million colors
Image Aspect Ratio 4:3
Response Time 6 ms
Image Brightness 300 cd/m2
Image Contrast Ratio 800:1
Digital Video Standard Digital Visual Interface (DVI)
Signal Input DVI-D, VGA
Compliant Standards Plug and Play, FCC Class B certified, CE, UL, TUV GS, cUL, ISO-2, SEMKO, DDC/CI, TCO Displays 5.0, DICOM Part 14
Power AC 120/230 V
Power Consumption Operational 58 Watt
Manufacturer Warranty 3 years warranty
General
Display Type LCD display / TFT active matrix
TFT Technology IPS
Dimensions With stand
Width 17.5 in
Depth 10.6 in
Height 17.1 in
Weight 19.2 lbs
Enclosure Color Black
Display
Diagonal Size 20.1"
Viewable Size 20.0"
Dot Pitch / Pixel Pitch 0.255 mm
Max Resolution 1600 x 1200
Color Support 16.7 million colors
Max Sync Rate (V x H) 60 Hz x 83 kHz
Response Time 6 ms
Display Positions Adjustments Height, pivot (rotation), swivel, tilt
Display Screen Coating Anti-glare, 3H Hard Coating
Tilt Angle -5/+20
Swivel Angle 350
Rotation Angle 90
Height Adjustment 3.9 in
Signal Input DVI-D, VGA
Features Backlight Output Stabilization (BLOS), 72% (CIE 1931) color gamut, Auto Resolution
Image Aspect Ratio 4:3
Image Brightness 300 cd/m2
Image Contrast Ratio 800:1
Image Max H-View Angle 178
Image Max V-View Angle 178
Video Input
Analog Video Signal RGB
Digital Video Standard Digital Visual Interface (DVI)
Expansion / Connectivity
Interfaces[ x VGA - 15 pin HD D-Sub (HD-15) 1 x DVI-D - 24 pin digital DVI
Miscellaneous
Cables Included[ x VGA cable 1 x DVI cable
Compliant Standards Plug and Play, FCC Class B certified, CE, UL, TUV GS, cUL, ISO-2, SEMKO, DDC/CI, TCO Displays 5.0, DICOM Part 14
Power
Voltage Required AC 120/230 V
Power Consumption Operational 58 Watt
Power Consumption Stand by / Sleep 1 Watt
Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - parts and labor - 3 years Limited warranty - backlight - 3 years
Dimensions & Weight Details
Dimensions & Weight Details With stand - 17.5 in x 10.6 in x 17.1 in x 19.2 lbs Without stand - 17.5 in x 7.1 in x 16.6 in x 16.5 lbs
