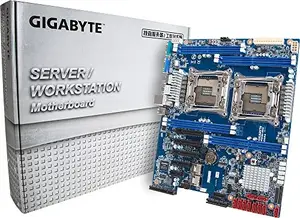

Technical Specifications
Form Factor
ATX
305W x 254D (mm)CPU
Intel Xeon E5-2600 V3 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable. Socket
2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel C612 Memory
8 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
Quad rank LRDIMM modules up to 64GB supported
1.2V modules: 1600/1866/2133 MHz LAN
2 x GbE LAN ports (Intel I210)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200at60Hz 32bpp SAS
2 x Mini-SAS (for 8 x SAS 6Gb/s ports)
(disabled, can be enabled with the CRA220-8 add-on card)
SATA
9 x SATA III 6Gb/s ports
1 x SATA III 6Gb/s port supporting SATA DOM RAID
Intel SATA RAID 0/1/10/5
Expansion Slots
2 x PCIe x8 (Gen3 x8 bus) slots
1 x PCIe x8 (Gen3 x4 bus) slot
1 x PCIe x4 (Gen3 x4 bus) slot
1 x PCIe x1 (Gen2 x1 bus) slot
1 x PCIe mezzanine type T (Gen3 x8 bus) slot Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x Mini-SAS ports
10 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x Serial header
1 x Front panel header 1 x HDD back plane board header
2 x SATA SGPIO headers
1 x Chassis intrusion header
1 x Software RAID header
1 x PLD header
1 x BMC JTAG header
1 x SATA DOM jumper
1 x ME update jumper
1 x PCH ME jumper 1 x Clear CMOS jumper
1 x S3 mask jumper
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector Rear I/O
2 x USB 3.0
2 x USB 2.0
1 x Serial
1 x VGA
3 x RJ45
TPM
1 x TPM header OS Supported
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 6.5 (x64)
Red Hat Enterprise Linux 6.6 (x64)
Red Hat Enterprise Linux 7.0 (x64)
SUSE Linux Enterprise Server 11 SP3 (x64)
SUSE Linux Enterprise Server 12 (x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2 Board Management
Aspeed AST2400 management controller
Avocent MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM and vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors Item Dimension (L"xW"xH"):
13 x 9 x 5
Weight:
9.08 lb
Warranty Information:
1 Year
