Product Overview

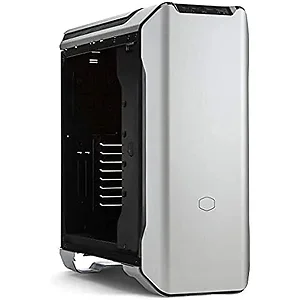

Clad in sand-blasted aluminum, the MasterCase SL600M is the centerpiece of the workspace, with the performance capability of housing a gaming setup. Although gaming cases generally look out of place in a professional environment, the MasterCase SL600M keeps both professionalism and performance intact while also taking on noise reduction and airflow. The MasterCase SL600M addresses both noise reduction and thermal efficiency; gaming can become quieter while noise reduction can run cooler. By fusing together the method of cooling with the method of noise-reduction, the MasterCase SL600M enables components to run efficiently for work, for play, and for everything in between.
Technical Specifications
Product Name
MasterCase SL600M
Available Color
Silver, Black
Materials
Body :Steel
Front Panel :Aluminum
Top Panel: Aluminum
Left Side Panel: Tempered Glass
Right Side Panel :Steel
Motherboard Support
Mini-ITX, Micro-ATX, ATX (E-ATX support up to 12" x 10.7", will limit cable management features)
Expansion Slots
9 + 2 (Support vertical graphics card installation)
Drive Bays
5.25" :0
Combo 3.5" / 2.5": 4
SSD: 4
I/O Panel
Power-LED Color: White
HDD-LED Color: White
USB-Ports: USB 3.1 Type C x 1, USB 3.0 Type A x 2, USB 2.0 Type A x 2
Audio In / Out: 1x 3.5mm Headset Jack (audio+mic) 1x 3.5mm Mic Jack
Reset Switch: N/A
Fan Control
4 step slide, 4pin PWM x 4
Pre-installed Fan(s)
Top: N/A
Front: N/A
Rear: N/A
Bottom: 200mm PWM Fan x 2 (Speed: 400800RPM / Connector: 4Pin)
Fan Support
Top :120mm x 3 or 140mm/200mm x 2
Front :N/A
Rear: N/A
Bottom: 120mm x 3 or 140mm/200mm x 2
Radiator Support
Top: 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 43mm
Front: N/A
Rear: N/A
Bottom: 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 72mm when the GFX is installed in the vertical position)
Clearance
CPU:Cooler 191mm
PSU: 200mm
GFX: 318mm
Dust Filters
Bottom
Power Supply Support
Front Top Mount, ATX
Item Dimension ( L inchxW inchxH inch)
25 x 13 x 27 Weight
64 lb Warranty Information
2 year
