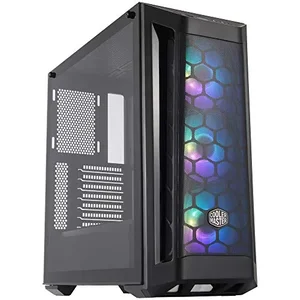

With the MasterBox MB511 ARGB ATX PC case, systems built for high demand gaming can breathe easy through the Fine Mesh front panel. Along with the aggressive intakes in front, there is also ventilation on the top panel for added thermal support. Cooler Master s signature Fine Mesh makes up the entire front panel, proven to provide generous airflow while simultaneously filtering out dust this not only keeps gaming systems cool but also clean. The internal layout was engineered for high compatibility for the latest gaming hardware while also accounting for future upgrades. Build versatility is supplemented by out-of-the-box ARGB lighting, ensuring that any gaming system built inside the MasterBox MB511 ARGB looks as good as it performs. Fine Mesh Front Panel: Cooler Master s Fine Mesh design on the front panel is proven to provide proficient airflow while filtering out dust. Mesh Intakes: Large, mesh intakes span each side of the front panel to provide additional airflow to system. ARGB Lighting System: The pre-installed ARGB fans can be managed by either the motherboard or the included controller and splitter, to create a comprehensive ARGB lighting system. Tempered Glass: Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in a panoramic view through an edge-to-edge tempered glass side panel. Optimized Airflow: Airflow is optimized by a collaboration between the concealed front panel ventilation, top panel ventilation, and rear exhaust.
Technical Specifications
SERIES MasterBox Series SIZE Mid Tower AVAILABLE COLOR(S) Black MATERIALS Steel, Plastic, Tempered Glass MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX, (support for up to 12" x 10.7", will limit cable management features) EXPANSION SLOTS 7 5.25" DRIVE BAYS N/A 2.5" / 3.5" DRIVE BAYS (COMBO) 2 (Max.2) 2.5" DRIVE BAYS 5 (Max.6) I/O PANEL 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter PRE-INSTALLED FANS - FRONT 3x 120mm ARGB Fans FAN SUPPORT - TOP 3x 120mm, 2x 140mm FAN SUPPORT - FRONT 3x 120mm, 2x 140mm FAN SUPPORT - REAR 1x 120mm RADIATOR SUPPORT - TOP 120mm, 240mm, 360mm, (44mm max motherboard component height) RADIATOR SUPPORT - FRONT 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance) RADIATOR SUPPORT - REAR 120mm CLEARANCE - CPU COOLER 165mm/6.49" CLEARANCE - PSU 180mm/7.08" CLEARANCE - GFX 410mm/16.1"
