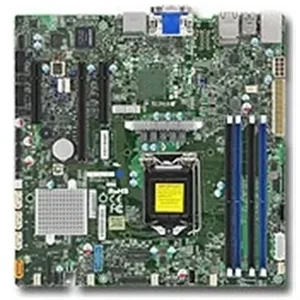

Supermicro MBD-X11SSZ-F-O X11SSZ-F-O LGA1151/ Intel C236/ DDR4/ SATA3&USB3.0/ A&V&2GbE/ MicroATX Motherboard

Processor/Cache
CPU:
- Single Socket H4 (LGA 1151) supports: Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i7/i5/i3, Intel Pentium, Intel Celeron processors
CPU TDP up to 95W System Memory
Memory Capacity:
- 4x 288-pin DDR4 DIMM slots
- Up to 64GB DDR4 ECC/Non-ECC UDIMM
Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72/64-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes: 16GB, 8GB, 4GB
Memory Voltage: 1.2V
Error Detection:
- Corrects Single Bit Errors
- Detects Double-Bit Errors (Using ECC Memory) On-Board Devices
Chipset: Intel C236 Chipset
SATA:
-SATA3 (6Gbps) via C236 controller
- RAID 0, 1, 5, 10 support
IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers:
- Single Intel I210-AT Gigabit Ethernet LAN port
- Single Intel PHY I219LM Gigabit Ethernet LAN port
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio: RealTek ALC 888S High Definition Audio
Graphics: ASPEED AST2400 BMC Input/Output
SATA: 4x SATA3 (6Gbps) ports
LAN:
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN Ports
USB:
- 4x USB 3.0 ports (2 rear + 2 via header)
- 9x USB 2.0 ports (2 rear + 6 via headers + 1 Type A)
Audio: Front Panel Audio Header
Video/Display: 2x DP (Display Ports), 1x DVI-I via Intel HD Graphics with 3x Independent Displays, 1x VGA port for Aspeed AST 2400 BMC
Serial Port/Header: 2x COM ports (2 headers)
SuperDOM:
- 1x SuperDOM (Disk on Module) ports with built-in power
TPM: 1x TPM 1.2 20-pin Header Expansion Slots
PCI-Express:
- 1 PCI-E 3.0 x16 (in x16) slot
- 2 PCI-E 3.0 x4 (in x8) slots System BIOs
BIOs Type:
128Mb SPI Flash EEPROM with AMI BIOS
BIOs Features:
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
- Hardware BIOs Virus Protection
- SMBIOS 2.7.1
- UEFI 2.3.1
- RTC (Real Time Clock) Wakeup Management
Software:
- Intel Node Manager
- IPMI 2.0 with KVM Support
- NMI
- Watch Dog
- Super Doctor 5
Power Configurations:
- ACPI Power Management
- Keyboard Wakeup from Soft-Off
- CPU Fan auto-off in sleep mode
- Power-on mode for AC power recovery PC Health Monitoring
Voltage: Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages
FAN:
- Total of 4 fan headers supporting up to 4 fans
- 4 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature:
- Monitoring for CPU and chassis environment
- CPU thermal trip Support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
LED:
- CPU / System Overheat LED
- Suspend Static Indicator LED
Other Features:
- Chassis Intrusion Detection
- Chassis Intrusion Header
- RoHS
- RSTe
8-Pin 12V DC Power Support Operating Environment
Operating Temperature: 0 C to 60 C (32 F to 140 F)
Non-Operating Temperature Range: -20 C to 60 C (-4 F to 140 F)
Operating Relative Humidity: 10% to 85% (Non-Condensing)
Non-Operating Relative Humidity Range: 10% to 95% (Non-Condensing) Form Factor
MicroATX Item Dimension (L"xW"xH")
10 x 10 x 1

Weight
6.00 lb

Warranty Information
1 Year
