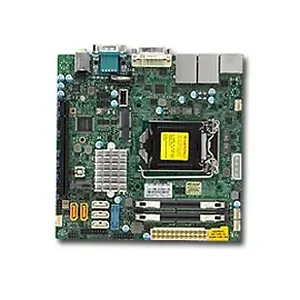

Supermicro MBD-X11SSV-Q-B Motherboard MBD-X11SSV-Q-O Skylake LGA1151 Socket H4 Q170 PCIE SATA VGA/HDMI/DP Retail

Form Factor
Mini-ITX
CPU
Intel 6th Gen Core i7/i5/i3 series, Intel Celeron, Intel Pentium processors CPU TDP support up to 95W TDP
Single Socket H4 (LGA 1151)
Memory Capacity
2x 260-pin DDR4 SODIMM slots
Up to 32GB DDR4 Non-ECC UDIMM
Memory Type
2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs
DIMM Sizes
16GB, 8GB, 4GB
Memory Voltage
1.2 V
Chipset
Intel Q170 Express chipset
SATA
SATA3 (6Gbps) via Intel Q170 Express controller
RAID 0, 1, 5, 10
5x SATA3 (6Gbps) ports
Network Controllers
Intel PHY i219LM + Intel i210AT Gigabit Ethernet LAN Controllers
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
RealTek ALC 888S High Definition Audio
Front panel header and 2 port jack
LAN
2x RJ45 Gigabit Ethernet LAN ports
USB
6x USB 3.0 ports (4 rear + 2 via header)
5x USB 2.0 ports (4 via headers + 1 Type A)
Video/Display
1x HDMI, 1x DP (Display Port), 1x DVI-I, Intel HD Graphics
3x Independent Displays
Serial Port / Header
2x RS232 COM ports (2 rear)
SuperDOM
1x SuperDOM (Disk on Module) ports with built-in power
TPM
1x TPM 20-pin Header
PCI-Express
1 PCI-E 3.0 x16 slot
Mini-PCIe with mSATA support
M.2 PCIe 3.0 x4 with SATA support, 2242/2280
Item Dimension (L"xW"xH")
7 x 7 x 1
Weight
2 lb
Warranty Information
1 Year
