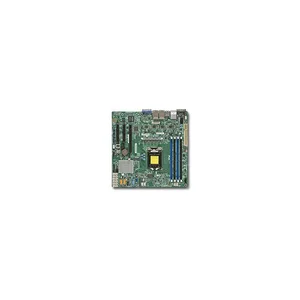

MBD-X11SSH-LN4F-B - Supermicro Motherboard-X11SSH-LN4F-B LGA1151 Socket H4 E3-1200v5 Core236 DDR4 PCI Express SATA Micro

Form Factor
microATX CPU
Single Socket H4 (LGA 1151) supports:
Intel Xeon processor E3-1200 v5,
Intel 6th Gen Core^TM i3,
Intel Pentium,
Intel Celeron processors
CPU TDP up to 80W Memory Capacity
4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 ECC UDIMM Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs DIMM Sizes
16GB, 8GB, 4GB Memory Voltage
1.2 V Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) Chipset
Intel C236 chipset SATA
SATA3 (6Gbps) via C236 controller
RAID 0, 1, 5, 10 support IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC Network Controllers
Quad Intel I210-AT Gigabit Ethernet LAN ports
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Graphics
ASPEED AST2400 BMC Input / Output
SATA : 8x SATA3 (6Gbps) ports ,
LAN : 4x RJ45 Gigabit Ethernet LAN ports , 1x RJ45 Dedicated IPMI LAN port
USB : 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) , 6x USB 2.0 ports (2 rear + 4 via header)
Video : 1x VGA port
Serial Port / Header : 2x COM ports (1 rear, 1 header)
SuperDOM : 2x SuperDOM (Disk on Module) ports with built-in power
TPM : 1x TPM 1.2 20-pin Header Expansion Slots
1x PCI-E 3.0 x8 (in x16) slot
1x PCI-E 3.0 x8 slot
1x PCI-E 3.0 x4 (in x8) slot M.2
Interface : PCI-E 3.0 x2
Form Factor : 2280 BIOS Features

Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup Software
Intel Node Manager
IPMI 2.0 with KVM support
NMI
Watch Dog
SuperDoctor 5 Power Configurations
ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery Voltage
Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. FAN
Total of 5 fan headers supporting up to 5 fans
5 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
