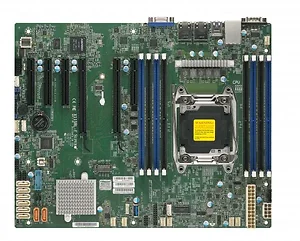

Technical Specifications
Physical Stats
Form Factor
ATX
Processor/Cache
CPU
Intel Xeon W-2100 Processors, Intel Xeon W-2200 Processors
Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP Cores / Cache
18 cores, 36 threads Note
W-2200 CPU is supported on the motherboards with BIOS 2.0 or newer upon receiving from Supermicro Note
To support 165W W-2200 CPUs, BIOS 2.0 and VRM update by Supermicro are required System Memory
Memory Capacity
Up to 512GB ECC RDIMM, DDR4-2933MHz Up to 1TB Registered ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes
4GB, 8GB, 16GB, 32GB, 64GB, 128GB Memory Voltage
1.2V Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C422 SATA
Intel C422 controller for 8 SATA3 (6 Gbps) ports , RAID 0,1,5,10 IPMI
ASPEED AST2500 Network Controllers
Dual LAN with Intel i210 Gigabit Ethernet Controller Graphics
Aspeed AST2500 BMC Input / Output
SATA
8 SATA 3(6Gbps) ports LAN
2 RJ45 Gigabit Ethernet LAN ports USB
6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header) TPM
TPM Header
Expansion Slots
PCI-E
3 PCI-E 3.0 x8,
1 PCI-E 3.0 x16,
1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x4 (in x8 slot)
