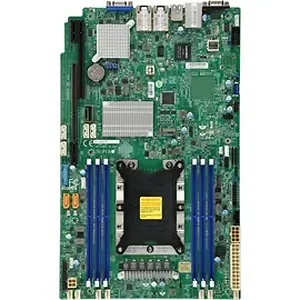

Product Overview
Processor & ChipsetChipset Manufacturer: IntelTotal Processor Supported: 1Processor Socket: Socket P LGA-3647Processor Supported: XeonMemoryNumber of Memory Slots: 6Memory Form Factor: RDIMM, DIMM, LRDIMMMaximum Memory: 768 GBMemory Technology: DDR4 SDRAMMemory Speed Supported: 2.67 GHz, 2.40 GHz, 2.13 GHz, 1.87 GHz, 1.60 GHzI/O ControllerController Type: Serial ATA/600RAID Supported: YesRAID Levels: 10, 5, 1, 0VideoOnboard Video: On-board Video ChipsetGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2500Network & Communication10Gigabit Ethernet: YesI/O ExpansionsNumber of Total Expansion Slots: 2Total Number of PCI Express Slots: 2Number of PCI Express x16 Slots: 1Number of PCI Express x32 Slots: 1Interfaces/PortsTotal Number of USB Ports: 4Number of USB 3.0 Ports: 2VGA: YesOnboard InterfacesNumber of SATA Interfaces: 10Number of M.2 Interfaces: 1Total Number of Onboard USB Ports: 8Number of Onboard USB 3.0 Ports: 3Physical CharacteristicsForm Factor: Proprietary Form FactorWidth: 13"Depth: 8"MiscellaneousCompatibility: Chassis: SC815TQC-605WB SC815TQC-R504WB SC825TQ-R500WB SuperServer: SYS-5019P-WT SYS-5019P-WTR SYS-5029P-WTR SYS-1019P-WTR
Technical Specifications
Form Factor
Proprietary WIO CPU
Intel Xeon Processor Scalable Family.
Single Socket P (LGA 3647) supported, CPU TDP support 205W Cores / Cache
Up to 28 cores Memory Capacity
6x 288-pin DDR4 DIMM slots
Up to 768GB ECC 3DS LRDIMM
Up to 384GB ECC LRDIMM
Up to 192GB ECC RDIMM Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GB Memory Voltage
1.2V Error Detection
Corrects single-bit errors Chipset
Intel C622 SATA
Intel C622 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI
ASPEED AST2500 Network Controllers
Dual LAN with 10GBase-T with Intel X722 + X557 Graphics
Aspeed AST2500 BMC USB
7 USB 2.0 ports (2 rear + 5 via header(s)),
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A) Video Output
1 VGA port(s) Serial Port / Header
2 COM Ports (1 rear, 1 header(s)) TPM
TPM Header PCI-E
1 PCI-E 3.0 x8 (in x16 slot),
1 PCI-E 3.0 x32 Left Riser Slot M.2
Interface: PCIe 3.0 x4 and SATA
Form Factor: 2280, 22110 BIOS Type
AMI UEFI
