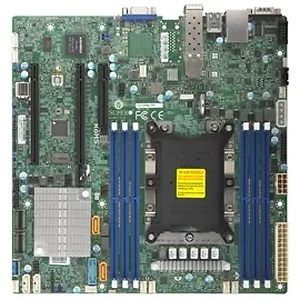

MBD-X11SPM-TPF-B - Supermicro X11SPM-T PF Xeon Motherboard S3647 PCIe ATX

Special Order
Ships in 1-2 weeks
Condition: New

$587.44  $793.04
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The Supermicro X11SPM-T PF motherboard is designed for high-performance computing, supporting Intel's Xeon Scalable processors with a single socket P (LGA 3647). It offers extensive memory support with up to 768GB of ECC memory and a plethora of connectivity options, making it ideal for data-intensive applications.

Technical Specifications

  • Form Factor: microATX
  • CPU: Intel Xeon Processor Scalable Family, Single Socket P (LGA 3647) with up to 165W TDP
  • Cores/Cache: Supports up to 28 cores
  • Memory Capacity: 6x 288-pin DDR4 DIMM slots, supporting:
    • Up to 768GB ECC 3DS LRDIMM
    • Up to 384GB ECC LRDIMM
    • Up to 192GB ECC RDIMM
  • Memory Type: 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM
  • DIMM Sizes: RDIMM: 4GB, 8GB, 16GB, 32GB; LRDIMM: 32GB, 64GB; 3DS LRDIMM: 64GB, 128GB
  • Memory Voltage: 1.2V
  • Error Detection: Corrects single-bit errors
  • Chipset: Intel C622
  • SATA: Intel C622 controller with 12 SATA3 ports (RAID 0,1,5,10)
  • IPMI: ASPEED AST2500
  • Network Controllers: Dual LAN with 10G SFP+ using Inphi CS4227
  • Graphics: Aspeed AST2500 BMC
  • USB: 6 USB 2.0 ports and 5 USB 3.0 ports
  • Video Output: 1 VGA port
  • Serial Port/Header: 2 COM Ports
  • TPM: TPM Header
  • PCI-E: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • M.2: Interface: PCIe 3.0 x4, Form Factor: 2242, 2280
  • BIOS Type: AMI UEFI

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Supermicro
  • MBD-X11SPM-TPF-B
  • B07F2QNY8Y
  • 672042282623
  • New
  • 2.2 lbs
  • 10 X 3 X 10
  • Jun 13, 2026
  • Sep 11, 2017
Product Identifiers: Brand: Supermicro • Part #: MBD-X11SPM-TPF-B • UPC: 672042282623 • ASIN: B07F2QNY8Y • Category: Server Boards
