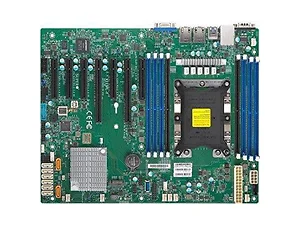

Supermicro MBD-X11SPL-F-O(3YR) X11SPL-F-O LGA3647/ Intel C621/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard

Physical Stats
Form Factor: ATX Processor/Cache
CPU:
- Intel Xeon Scalable Processors.
- Single Socket P (LGA 3647) supported, CPU TDP support 165W
Cores / Cache: Up to 28 cores System Memory
Memory Capacity:
- 8x 288-pin DDR4 DIMM slots,
- Up to 1TB ECC 3DS LRDIMM,
- Up to 512GB ECC LRDIMM,
- Up to 256GB ECC RDIMM
Memory Type: 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes:
- RDIMM: 4GB, 8GB, 16GB, 32GB
- LRDIMM: 32GB, 64GB
- 3DS LRDIMM: 64GB, 128GB
Memory Voltage: 1.2V
Error Detection: Corrects single-bit errors On-Board Devices
Chipset: Intel C621
SATA: Intel C621 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI: ASPEED AST2500
Network Controllers: Dual LAN with 1GbE with Intel I210
Graphics: Aspeed AST2500 BMC Input / Output
SATA: 8 SATA3 (6Gbps) port
LAN: 2 RJ45 Gigabit Ethernet LAN ports
USB:
- 8 USB 2.0 ports (2 rear + 6 headers),
- 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output: 1 VGA port
Serial Port / Header: 2 COM Ports (1 rear, 1 header)
TPM: TPM Header Expansion Slots
PCI-E:
- 2 PCI-E 3.0 x8 (in x16 slot),
- 4 PCI-E 3.0 x8,
- 1 PCI-E 3.0 x4 (in x8 slot)
M.2:
- M.2 Interface: PCI-E 3.0 x4 and SATA
- Form Factor: 2280, 22110 System BIOS
BIOS Type: UEFI 256Mb
BIOS Features:
- ACPI 6.0
- RTC (Real Time Clock) Wakeup
- SMBIOS 3.0 or later Management
Software: Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watchdog
Power Configurations:
- ACPI Power Management
- Power-on mode for AC power recovery PC Health Monitoring
Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT
FAN: 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control
Temperature: CPU thermal trip support, PECI
LED: CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features: ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL Operating Environment
Operating Temperature Range: 0^oC to 50^oC (32^oF to 122^oF)
Non-Operating Temperature Range: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity Range: 8% to 90% (non-condensing)
Non-Operating Relative Humidity Range: 5% to 95% (non-condensing) Item Dimension ( L inch x W inch x H inch)
14 x 11 x 3 Weight
3.00 lb Warranty Information
3 Year
