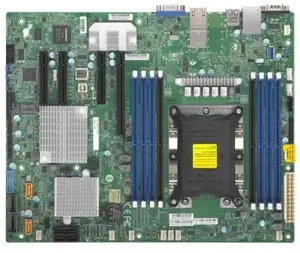

Supermicro MBD-X11SPH-NCTF-O Motherboard MBD-X11SPH-NCTF-O Intel Xeon Scalable LGA3647 C622 1TB DDR4 PCI Express ATX Ret

Product SKUs
MBD-X11SPH-nCTF
X11SPH-nCTF
Physical Stats
Form Factor
ATX
Processor/Cache
CPU
Intel Xeon Scalable Processors.
Single Socket P (LGA 3647) supported, CPU TDP support 205W
Cores / Cache
Up to 28 cores
System Memory
Memory Capacity
8x 288-pin DDR4 DIMM slots,
Up to 1TB ECC 3DS LRDIMM,
Up to 512GB ECC LRDIMM,
Up to 256GB ECC RDIMM
Memory Type
2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C622
SATA
Intel C622 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10
Broadcom 3008 SW controller for 8 SAS3 (12Gbs) ports RAID 0,1,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 10GBase-T with Intel X722 + X557
Graphics
Aspeed AST2500 BMC
Input / Output
SATA
10 SATA3 (6Gbps) port
LAN
2 RJ45 10GBase-T ports
USB
8 USB 2.0 ports (2 rear + 6 headers),
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
TPM Header
