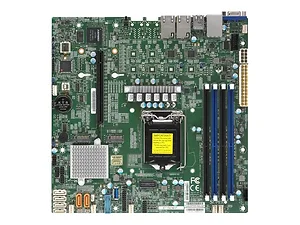

MBD-X11SCM-F-O(5YR) - Supermicro MOTHER BOARD-INTEL, SKT LGA1151, C246 CHIPSET, 4X DDR4 2666 MHZ ECC UDIMM, 2X1G, SI

Physical Stats
Form Factor
microATX Processor/Cache
CPU
8th/9th Generation Intel Core^TMi3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP Cores / Cache
8 cores, 16 threads Note
BIOS version 1.0b or above is required to support Intel Xeon E-2200 and 9th Generation Intel Core^TMi3/Pentium/Celeron Processors System Memory
Memory Capacity
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM 72-bit DIMM Sizes
4GB, 8GB, 16GB, 32GB Memory Voltage
1.2V Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C246 SATA
Intel C246 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI
ASPEED AST2500 Network Controllers
Dual LAN with Intel Ethernet Controller I210-AT Graphics
Aspeed AST2500 BMC Input / Output
SATA
6 SATA3 (6Gbps) port LAN
2 RJ45 Gigabit Ethernet LAN ports USB
4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.1 Gen1 ports(2 rears, 2 via headers, 1 Type A) Video Output
1 VGA port Serial Port / Header
1 COM Port (1 header) TPM
1 TPM Header
