Product Overview
- Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s - Intel® C621 - Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots - 2 PCI-E 3.0 x16,8 PCI-E 3.0 x8,1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8 slot)M.2 Interface: 1 PCI-E 3.0 x4M.2 Form Factor: 2280, 22110M.2 Key: M-Key - 1 VGA D-Sub Connector port - Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 - Dual LAN with Intel® X550 10GBase-T Ethernet ControllerPhysical Stats - Form FactorProprietaryProcessor/Cache - CPUIntel Xeon Scalable Processors.Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s - Cores / CacheUp to 28 coresSystem Memory - Memory CapacityUp to 2TB 3DS...
Expert Overview

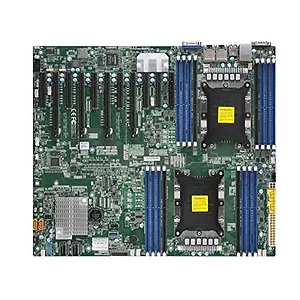

The Supermicro MBD-X11DPX-T-B is a proprietary form factor server motherboard designed for demanding business and IT infrastructure applications. It supports dual Intel Xeon Scalable Processors with a TDP of up to 205W per CPU, leveraging the Intel C621 chipset. This board is suitable for organizations requiring substantial processing power and memory capacity, offering 16 DIMM slots for up to 2TB of 3DS ECC RDIMM or LRDIMM DDR4-2666MHz memory. Storage capabilities include 10 SATA3 (6 Gbps) ports with RAID 0, 1, 5, 10 support, and one PCI-E 3.0 x4 M.2 slot for high-speed storage. Network connectivity is provided by dual Intel X550 10GBase-T Ethernet controllers. This motherboard addresses the need for a robust foundation in server builds, data centers, or high-performance computing environments where scalability and reliability are critical for operations.
Technical Specifications
Physical Stats
- Form Factor
Proprietary
Processor/Cache
- CPU
Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
- Cores / Cache
Up to 28 cores
System Memory
- Memory Capacity
Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
- Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
- DIMM Sizes
64GBRDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB
- Memory Voltage
1.2V
- Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- Chipset
Intel C621
- SATA
Intel C621 controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10
- IPMI
ASPEED AST2500
- Network Controllers
Dual LAN with Intel X550 10GBase-T Ethernet Controller
- Graphics
Aspeed AST2500 BMC
Input / Output
- SATA
10 SATA3 (6Gbps) port
- LAN
2 RJ45 10GBase-T ports
- USB
4 USB 2.0 ports (2 rear + 1 header),
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
- Video Output
1 VGA D-Sub Connector port
- Serial Port / Header
2 COM Ports (1 rear, 1 header)
- TPM
1 TPM Header
Expansion Slots
- PCI-E
2 PCI-E 3.0 x16,
8 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8 slot)
- M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
System BIOS
- BIOS Type
AMI 32Mb SPI Flash ROM
- BIOS Features
Plug and Play (PnP)
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
- Software
Intel Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
- Power Configurations
ACPI Power Management
PC Health Monitoring
- Voltage
+1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 5+1 Phase-switching voltage regulator, Chassis intrusion header, HT, Supports system management utility, VBAT
- FAN
10x 4-pin fan headers (up to 10 fans)
- Temperature
N/A
- LED
CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
- Other Features
Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
Operating Environment
- Operating Temperature Range
10oC to 35oC (50oF to 95oF)
- Non-Operating Temperature Range
-40oC to 70oC (-40oF to 158oF)
- Operating Relative Humidity Range
8% - 90% (non-condensing)
- Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Weight
2.00lb
Warranty Information
Manufacturer Warranty
Frequently Asked Questions
What processors are compatible with this motherboard?
This motherboard supports dual Intel Xeon Scalable Processors with a Dual Socket P (LGA 3647) configuration, and a CPU TDP support of up to 205W.
What type of memory does this motherboard support?
It supports up to 2TB of 3DS ECC RDIMM or LRDIMM DDR4-2666MHz memory across 16 DIMM slots. Compatible memory types include 2666/2400/2133MHz ECC DDR4 RDIMM and LRDIMM.
What network connectivity options are available?
The motherboard features dual LAN with Intel X550 10GBase-T Ethernet Controllers, providing two RJ45 10GBase-T ports for high-speed network connections.
What are the available expansion slots for add-in cards?
It offers flexible PCI-E 3.0 expansion with configurations such as two x16, eight x8, and one x4 slot, or four x16, four x8, and one x4 slot. There is also one M.2 PCI-E 3.0 x4 slot supporting 2280 and 22110 form factors.
