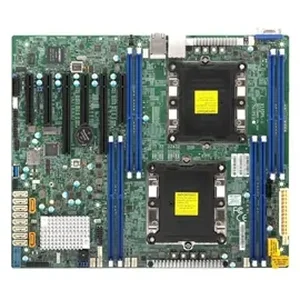

Product Overview
Processor & ChipsetChipset Manufacturer: IntelTotal Processor Supported: 2Processor Socket: Socket P LGA-3647Processor Supported: XeonMemoryNumber of Memory Slots: 8Memory Form Factor: RDIMM, DIMM, LRDIMMMaximum Memory: 1 TBMemory Technology: DDR4 SDRAMMemory Speed Supported: 2.67 GHz, 2.40 GHz, 2.13 GHzI/O ControllerController Type: Serial ATA/600RAID Supported: YesRAID Levels: 10, 5, 1, 0VideoOnboard Video: On-board Video ChipsetGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2500AudioAudio Channels: 7.1Network & CommunicationGigabit Ethernet: YesI/O ExpansionsNumber of Total Expansion Slots: 6Total Number of PCI Express Slots: 6Number of PCI Express x4 Slots: 1Number of PCI Express x8 Slots: 3Number of PCI Express x16 Slots: 2Interfaces/PortsTotal Number of USB Ports: 2VGA: YesOnboard InterfacesNumber of SATA Interfaces: 10Number of M.2 Interfaces: 1Total Number of Onboard USB Ports: 5Number of Onboard USB 3.0 Ports: 3Physical CharacteristicsForm Factor: ATXWidth: 12.1"Depth: 10.2"MiscellaneousCompatibility: SuperServer: SYS-1029P-MT SYS-1029P-MTR SYS-6019P-MT SYS-6019P-MTR Chassis: SC813MF2TQC-505CB SC113MFAC2-605CB SC113MFAC2-R608CB SC813MF2TQC-R608CB
Technical Specifications
<b>Form Factor</b><br>ATX <b>CPU</b><br>Intel Xeon Processor Scalable Family.<br>Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s <b>Memory Capacity</b><br>Up to 512GB Registered ECC RDIMM and DDR4-2666MHz, Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots <b>Memory Type</b><br>2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM <b>DIMM Sizes</b><br>RDIMM: 64GB<br>LRDIMM: 128GB<br>3DS LRDIMM: 128GB <b>Memory Voltage</b><br>1.2V <b>Error Detection</b><br>Corrects single-bit errors <b>Chipset</b><br>Intel C621 <b>SATA</b><br>Intel C621 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10 <b>IPMI</b><br>ASPEED AST2500 <b>Network Controllers</b><br>Dual LAN with Lewisburg<br>Marvell 88E1512 PHY <b>Video Output</b><br>1 VGA port(s) <b>Serial Port / Header</b><br>1 COM Port (1 header(s)) <b>TPM</b><br>1 TPM Header <b>PCI-E</b><br>2 PCI-E 3.0 x16,<br>3 PCI-E 3.0 x8,<br>1 PCI-E 3.0 x4 (in x8 slot) <b>M.2</b><br>Interface: PCIe 3.0 x4<br>Form Factor: 2260, 2280 <b>BIOS Type</b><br>AMI UEFI <b>Software</b><br>Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog <b>Power Configurations</b><br>ACPI Power Management <b>Voltage</b><br>+12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility
