Product Overview

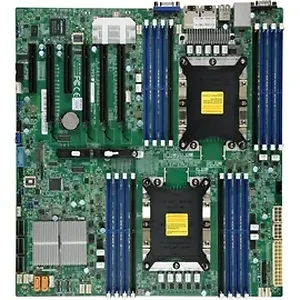

DP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro's new generation X11 DP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation boards offer in addition 7.1 HD Audio, Thunderbolt AOC header, and up to 11 USB ports.
Technical Specifications
Form Factor
E-ATX CPU
Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s Cores / Cache
Up to 28 cores Memory Capacity
Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes
RDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB Memory Voltage
1.2V Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) Chipset
Intel C622 SATA
Intel C622 controller for 14 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI
ASPEED AST2500 Network Controllers
Dual LAN with 10GBase-T with Intel X557 Graphics
Aspeed AST2500 BMC USB
5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A) Video Output
1 VGA port(s) Serial Port / Header
2 COM Ports (1 rear, 1 header(s)) TPM
1 TPM Header PCI-E
4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8 M.2
Interface: PCIe 3.0 x4
Form Factor: 2260, 2280, 22110 BIOS Type
AMI UEFI
