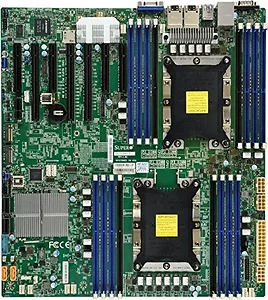

Supermicro MBD-X11DPH-I-O Motherboard MBD-X11DPH-I-O Xeon LGA 3647 C621 Max.1TB DDR4 205W PCI Express SATA Extended ATX

Form Factor
E-ATX Processor/Cache
CPU:
- Intel Xeon Scalable Processors.
-Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
-CPU1: Skylake-F CPU supported System Memory
Memory Capacity: Up to 1TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type: 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes:
-RDIMM: 64GB
-LRDIMM: 64GB
-3DS LRDIMM: 128GB
Memory Voltage: 1.2V
Error Detection:
-Corrects single-bit errors
-Detects double-bit errors (using ECC memory) On-Board Devices
Chipset: Intel C621
SATA: Intel C621 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI: ASPEED AST2500
Network Controllers: Dual LAN with 1GbE with Marvell 88E1512 Input / Output
SATA: 10 SATA3 (6Gbps) ports
LAN: 2 1GbE LAN ports
USB: 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)
Video Output: 1 VGA port
Serial Port / Header: 2 COM Ports (1 rear, 1 header)
TPM: 1 TPM Header Expansion Slots
PCI-E:
-3 PCI-E 3.0 x16,
-4 PCI-E 3.0 x8
M.2:
-M.2 Interface: PCI-E 3.0 x4 and PCI-E 3.0 x4
-Form Factor: M-Key 22110 (RAID 0,1 support) System BIOS
BIOS Type: AMI UEFI Management
Software: Intel Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor 5, Watchdog PC Health Monitoring
Voltage: +1.8V, +12V, +3.3V, +5V, +5V standby, 6+1 Phase-switching voltage regulator, 7-fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
FAN: 7fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control
Temperature:
-CPU thermal trip support
-Monitoring for CPU and chassis environment
-PECI
LED:
-CPU / System Overheat LED
-UID/Remote UID
-Suspend static indicator LED
Other Features: ACPI power management, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID Operating Environment
Operating Temperature Range: 10^oC - 35^oC (50^oF - 95^oF)
Non-Operating Temperature Range: -40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range: 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) Item Dimension (L"xW"xH")
12 x 13 x 2

Weight
3 lbs

Warranty Information
3 Years
