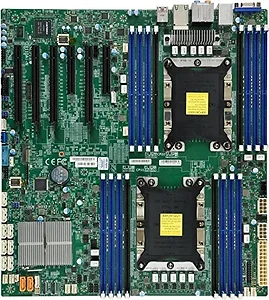

Supermicro MBD-X11DAI-N-B(3YR) Motherboard MBD-X11DAI-N-O Xeon Dual Socket S3647 C621 Max.2TB PCI Express EATX Brown Box

Product SKUs
MBD-X11DAi-N:X11DAi-N
Physical Stats
Form Factor:E-ATX
Processor/Cache
CPU:Intel Xeon Scalable Processors.
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
System Memory
Memory Capacity:Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type:2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes:RDIMM: 64GB
LRDIMM: 64GB
3DS LRDIMM: 128GB
Memory Voltage:1.2V
Error Detection:Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset:Intel C621
SATA:Intel C621 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10
IPMI:ASPEED AST2500
Network Controllers:Dual LAN with GbE from C621 Support 1000BASE-T
Audio:7.1 HD Audio
Graphics:Aspeed AST2500 BMC
Input / Output
USB:4 USB 3.0 ports (4 rear),
2 USB 3.1 ports (2 rear)
Video Output:1 VGA port
Serial Port / Header:1 COM Port (1 header)
TPM: 1 TPM Header
Others:Thunderbolt header for Thunderbolt AOC support
Expansion Slots
PCI-E:4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2:M.2 Interface: PCI-E 3.0 x4
Form Factor: 2260, 2280, 22110
Key: M-Key
System BIOS
BIOS Type:AMI 32Mb SPI Flash ROM
Management
Software:Intel Node Manager, IPMI2.0, SPM, SSM, SUM, SuperDoctor 5, Watchdog
PC Health Monitoring
Voltage:+1.8V, +12V, +3.3V, +5V, +5V standby
FAN: 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors
Temperature:N/A
LED:N/A
Other Features:Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
Item Dimension ( L inch x W inch x H inch)
12 x 13 x 1 Weight
3.00 lb Warranty Information
3 Year
