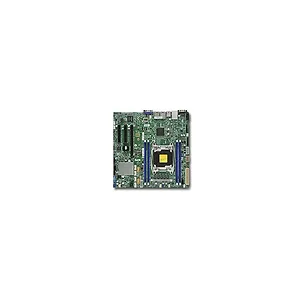

Supermicro MBD-X10SRM-F-O X10SRM-F-O LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Server Motherboard

Specifications

• Mfr Part Number: X10SRM-F-O
• CPU: LGA2011
  • Support Intel Xeon E5-2600 v4/ v3, E5-1600 v3 Family Processors

  • Support up to 22 Cores
  • Cache up to 55MB

  • Support up to 145W TDP

• Chipset: Intel C612

• Memory: 4x 288pin DDR4-2400/ 2133/ 1866/ 1600 DIMM Slots, Support up to 512GB ECC/3DS Load Reduced Memory or up to 256GB ECC/Load Reduced Memory or up to 128GB ECC/REG Memory

• Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x8 Slots
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 10
• Video: ASPEED AST2400 BMC Graphics
• LAN: Intel i350 Dual-Port Gigabit Ethernet Controller
• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
• RoHS Compliant
