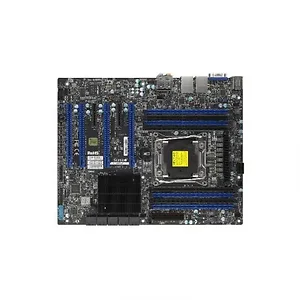

Supermicro MBD-X10SRA-B Motherboard MBD-X10SRA-B Xeon E5-1600/2600v3 LGA2011 Socket R3 PCI Express ATX Brown Box

1. Single socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3, E5-1600 v3, and 4th gen. Core i7

2. Intel C612 chipset

3. Up to 512GB ECC DDR4 2133MHz LRDIMM or 64GB ECC/non-ECC UDIMM (available with Core i7 only); 8x DIMM slots

4. 4 PCI-E 3.0 x16 (run at 16/16/NA/8 or 16/8/8/8), 2 PCI-E 2.0 x1 (in x4)

5. Intel i210-AT Dual port GbE LAN

6. 10x SATA3 (6Gbps)

7. 1x COM, 1x TPM

8. 8x USB 3.0 ports (6 rear + 2 via header)

9. HD Audio 7.1 channel connector by Realtek ALC1150

Form Factor
ATX
CPU
Intel Xeon processor E5-2600/1600 v3 family or Intel 4th gen. Core^TM i7 series (up to 160W TDP) (Motherboard supports this maximum TDP. Please verify your system can thermally support)
Single Socket R3 (LGA 2011)
Core / Cache
Up to 18 Cores / Up to 45MB Cache
Memory Capacity
8x 288-pin DDR4 DIMM slots
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
Up to 64GB DDR4 ECC/non-ECC UDIMM (available with Core i7 only)
Memory Type
2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM/LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset : Intel C612 chipset
SATA : SATA3 (6Gbps) via C612 controller, RAID 0, 1, 5, 10 support
Network Controllers : Intel i210-AT Dual Port Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio : RealTek ALC1150 High Definition Audio
Input / Output
SATA : 10x SATA3 (6Gbps) ports
LAN : 2x RJ45 Gigabit Ethernet LAN ports
USB : 8x USB 3.0 ports (6 rear + 2 via header), 4 of 8 USB 3.0 ports upgradable to 4x USB 3.1 (10Gbps) (2 rear + 2 via header) (This upgrade is BOM option for OEM only)
Audio : 7.1 HD Jacks
Keyboard/Mouse : 1 PS/2 Keyboard/Mouse port
Serial Port / Header : 1x header
TPM : 1x TPM 1.2 20-pin Header
PCI-Express
4x PCI-E 3.0 x16 slots (runs at 16/16/NA/8 or 16/8/8/8)
2x PCI-E 2.0 x1 (in x4) slots
(PCI-E slot number 1 supports (x4) and slot number 4 (x16) is disabled when an Intel Core i7-5820K is installed)
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup
Software
SuperDoctor 5
SuperDoctor III
Watch Dog
Power Configurations
ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery
Voltage
+12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN
Total of 5 fan headers supporting up to 5 fans
5 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
I²C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Suspend static indicator LED
Other Features
Chassis intrusion detection
Chassis intrusion header
Chipkill support
RoHS
