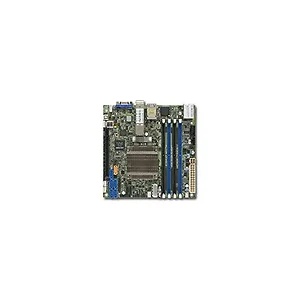

Supermicro MBD-X10SDV-8C-TLN4F-O Motherboard MBD-X10SDV-8C-TLN4F-O Xeon D-1540 FCBGA 1667 8-Core DDR4 PCI-Express MiniIT

Physical Stats
Form Factor:Mini-ITX

Processor/Cache
CPU:Intel Xeon processor D-1540
FCBGA 1667 supported
CPU TDP support 45W, 2.0-2.6GHz, 12MB, 8 Cores, 16 Threads

System Memory
Memory Capacity:4x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type:2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes:32GB, 16GB, 8GB, 4GB
Memory Voltage:1.2 V
Error Detection:Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset:System on Chip
SATA:System on Chip
Network Controllers:Dual LAN via Intel i350-AM2 Gigabit Ethernet
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI:Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:Aspeed AST2400
TPM:TPM header

Input / Output
SATA:6x SATA3 (6Gbps) ports
LAN:2x RJ45 Gigabit Ethernet LAN ports
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port
USB:2x USB 3.0 ports (rear)
4x USB 2.0 ports (via headers)
Video:1x VGA port
Serial Port / Header:1x COM port (header)
DOM:1x SuperDOM (Disk on Module) power connector

Expansion Slots
PCI-Express:1x PCIe 3.0 x16 slot
M.2 PCIe 3.0 x4, M Key 2242/2280

System BIOS
BIOS Type:128Mb SPI Flash with AMI BIOS
BIOS Features:Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI
RTC (Real Time Clock) Wakeup

Management
Software:IPMI 2.0
KVM with dedicated LAN
NMI
SUM
