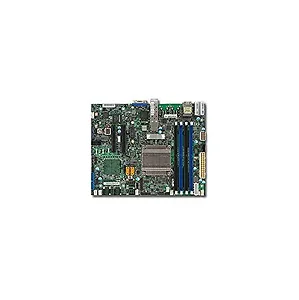

SUPERMICRO X10SDV-2C-TP4F - Motherboard - FlexATX - Intel Pentium D1508 - USB 3.0 - 2 x 10 Gigabit LAN, 2 x Gigabit LAN - onboard graphics - for SC504 203B, SC505 203B, SC514 505
Technical Specifications
<b>Form Factor</b><br>Flex ATX <b>Processor/Cache</b><br>CPU:<br>- Intel Pentium Processor D1508 2.2GHz to 2.6GHz, CPU TDP Support 25W<br>FCBGA 1667<br>Cores/Cache:<br>- 2 Cores, 4 Threads / 3MB <b>System Memory</b><br>Memory Capacity<br>- 4x DDR4 DIMM sockets<br>- Supports up to 128GB DDR4 ECC RDIMM<br>- Supports up to 64GB DDR4 ECC/non-ECC UDIMM<br>Memory Type: 1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM<Br>DIMM Sizes: 32GB, 16GB, 8GB, 4GB<br>Memory Voltage: 1.2V<br>Error Detection:<br>- Corrects Single Bit Errors<br>- Detects Double Bit Errors (Using ECC Memory) <b>On-Board Devices</b><br>Chipset: System on Chip<br>SATA: SoC Controller for 4 SATA3 (6Gbps) Ports, RAID 0, 1, 5, 10 RSTE<br>Network Controller<br>- Dual 10G SFP+ from D-1500 SoC<br>- Dual 1GbE with Intel I210<br>IPMI:<br>- Support for Intelligent Platform Management Interface v2.0<br>- IPMI 2.0 with Virtual Media Over LAN and KVM-Over-LAN Support<br>Video: Aspeed AST2400<br>TPM: TPM 2.0 Header <b>Input/Output</b><br>SATA: 4 x SATA3 (6Gbps) Ports<br>LAN:<br>- 2 10G SFP+ LAN ports<br>- 2 1GbE LAN ports<br>- 1 Dedicated IPMI LAN port<br>USB:<br>- 2 USB 3.0 ports (rear)<Br>- 5 USB 2.0 ports (4 via headers, 1 Type A)<br>Video: 1 x VGA<br>Serial Port/Header: 1 COM Port (Header)<br>DOM: 2 SuperDOM (Disk on Module) power connectors <b>Expansion Slots</b><br>PCI-Express: 2 x PCI-E 3.0 x8 Slots<br>M.2:<br>- Interface: PCI-E 3.0 x4<br>- Form Factor: M Key 2242/2280/22110<br>- Support SATA devices<br>Mini PCI-E:<br>- Interface: PCI-E 2.0 x1<br>- Support mSATA <b>System BIOs</b><br>BIOs Type: 128Mb SPI Flash with AMI BIOS<br>BIOs Features:<br>- PCI 3.0<br>- ACPI 5.0<br>- USB Keyboard support<br>- Hardware BIOS Virus protection<br>- SMBIOS 2.8<br>- UEFI 2.4<br>- RTC (Real Time Clock) Wakeup <b>Management</b><br>Software:<br>- Intel Node Manager<br>- IPMI 2.0<br>- KVM with dedicated LAN<br>- NMI<br>- SUM<br>- SuperDoctor 5<br>- Watch Dog<br>Power Configurations:<br>- ACPI Power Management<br>- ATX Power connector<br>- +12V DC Power Input<br>- Control of power-on for recovery from AC power loss<br>- CPU thermal trip support for processor protection<br>- M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL <b>PC Health Monitoring</b><br>Voltage:<br>- Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, Chassis intrusion header, System level control, VBAT<br>Fan:<br>- Total of six 4-pin fan headers supporting tachometer status monitoring<br>- Dual Cooling Zone<Br>- Status monitor for speed control<br>- Status monitor for on/off control<br>- Low noise fan speed control<Br>- Pulse Width Modulated (PWM) fan connectors<br>Temperature:<br>- Monitoring for CPU and chassis environment<br>- CPU thermal trip support<br>- Thermal Monitor 2 (TM2) support<br>- PECI<br>LED: CPU/System Overheat LED<br>Other Features:<br>- Chassis intrusion detection<br>- Chassis intrusion header<br>- 12V DC or ATX Power Source<br>- RoHS <b>Operating Environment</b><br>0 C to 60 C (32F to 140 F) <b>Weight</b><br>3.00 lb<br><br><b>Warranty Information</b><br>1 Year
