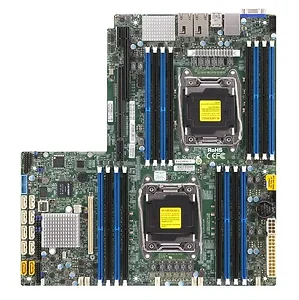

Supermicro MBD-X10DRW-IT-B X10DRW-IT-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ Proprietary WIO Server Moth

Physical Stats
Form Factor
Proprietary WIO
Processor/Cache
CPU
Intel Xeon processor E5-2600 v3, Intel Xeon processor E5-2600 v4.
Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s
Cores / Cache
Up to 22 cores / Up to 55MB cache
Note
BIOS version 2.0 or above is required
Note
Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
1TB Registered ECC RDIMM, DDR4-2400MHz, Up to 2TB 3DS ECC LRDIMM, in 4 DIMM slots
Memory Type
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C612
SATA
Intel C612 controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10
AHCI SATA
SATA3 (6Gbps), RAID 0, 1, 5, 10
SCU SATA
SATA3 (6Gbps), RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Dual LAN with Intel X540 10GBase-T Ethernet Controller Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
Aspeed AST2400 BMC
Input / Output
SATA
10 SATA3 (6Gbps) port
LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 3.0 ports (4 rear + 2 headers)
Video Output
1 VGA port
Serial Port / Header
1 COM Port (1 header)
TPM
1 TPM Header
PCI-E
1x PCI-E 3.0 x16 for Add-on Module (AOM)
Riser card support:
Left side - 1 PCI-E 3.0 x32
Right side - 1 PCI-E 3.0 x16
System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
Software
Intel Node Manager, IPMI2.0, NMI, SuperDoctor 5, Watchdog
System Mangement Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
1.5 / 2.0
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT
FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 6 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI
LED
CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features
Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC
Operating Environment
Operating Temperature Range
10^oC - 35^oC (50^oF - 95^oF)
Non-Operating Temperature Range
-40^oC - 70^oC (-40^oF - 158^oF)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Weight
3.00 LB
Warranty Information
3 Years
