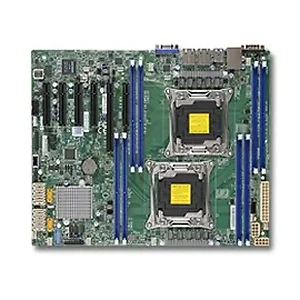

Supermicro MBD-X10DRL-I-O(3YR) X10DRL-I-O Motherboard for E5-2600v3 CPUs

Out of Stock
Condition: New

$492.96  $665.50
 Free Shipping for this Item

Product Overview

The Supermicro X10DRL-I-O motherboard is designed to support Intel Xeon E5-2600 v3 processors with dual Socket R3 configurations, making it an ideal choice for high-performance computing environments. It offers extensive memory capacity and advanced features for redundancy and reliability, suitable for enterprise applications. This motherboard is equipped with multiple networking options and storage capabilities, optimized for server needs.

Technical Specifications

  • Form Factor: ATX
  • CPU: Supports Intel Xeon E5-2600 v3 family (up to 145W TDP) with dual Socket R3 (LGA 2011).
  • Cores / Cache: Up to 18 Cores and up to 45MB Cache.
  • System Bus: QPI up to 9.6 GT/s.
  • Memory Capacity: 8x 288-pin DDR4 DIMM slots supporting up to 512GB ECC LRDIMM or 256GB ECC RDIMM.
  • Memory Type: Supports 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit.
  • DIMM Sizes: RDIMM: 32GB, 16GB, 8GB, 4GB; LRDIMM: 64GB, 32GB.
  • Memory Voltage: 1.2 V.
  • Error Detection: Corrects single-bit errors.
  • Chipset: Intel C612 chipset.
  • AHCI SATA: SATA3 (6Gbps) with RAID support (0, 1, 5, 10).
  • SCU SATA: SATA3 (6Gbps) with RAID support (0, 1, 5, 10).
  • IPMI: Supports Intelligent Platform Management Interface v.2.0.
  • Network Controllers: Intel i210 Gigabit Ethernet controller with support for various Ethernet standards.
  • Video: ASPEED AST2400 BMC.
  • SATA: 10x SATA3 (6Gbps) ports.
  • LAN: 2x RJ45 Gigabit Ethernet LAN ports and 1x RJ45 Dedicated IPMI LAN port.
  • USB: 4x USB 3.0 ports (2 rear + 2 via header) and 5x USB 2.0 ports.
  • PCI-Express: Includes 3 PCI-E 3.0 x8 slots, 1 PCI-E 3.0 x16 slot, 1 PCI-E 3.0 x4 (in x8), and 1 PCI-E 2.0 x4 (in x8).
  • BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS.

Product Details

  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Supermicro
  • MBD-X10DRL-I-O(3YR)
  • New
  • 2 lbs
  • 0 X 0 X 0
  • Mar 21, 2026
  • Dec 23, 2016
Product Identifiers: Brand: Supermicro • Part #: MBD-X10DRL-I-O(3YR) • Category: Motherboards
