Product Overview

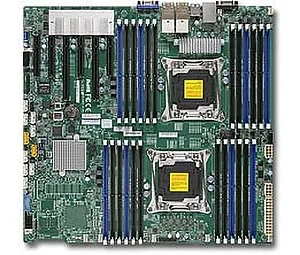

SUPERMICRO X10DRi-T4+ - Motherboard - enhanced extended ATX - LGA2011-v3 Socket - 2 CPUs supported - C612 Chipset - USB 3.0 - 4 x 10 Gigabit LAN - onboard graphics - for SC213, SC745, SC826, SC835, SC836, SC846
Technical Specifications
Physical Stats
Form Factor
Enhanced Extended ATX
Processor/Cache
CPU
Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP)
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 22 Cores / Up to 55MB Cache
System Bus
QPI up to 9.6 GT/s Note
BIOS version 2.0 or above is required
Note
Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity
24x 288-pin DDR4 DIMM slots
Up to 3TB ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C612 chipset
AHCI SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
SCU SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel X540 Quad Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
ASPEED AST2400 BMC
Input / Output
SATA
10x SATA3 (6Gbps) ports
LAN
4x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port
USB
5x USB 3.0 (2 rear, 2 front panel, 1 Type A)
4x USB 2.0 ports (2 rear, 2 front panel)
Video
1x VGA port
Serial Port / Header
2x Fast UART 16550 serial
2x COM Ports (1 rear, 1 header)
