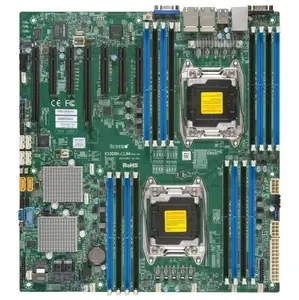

MBD-X10DRH-ILN4-O - Supermicro X10DRH-ILN4-O Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&4GbE/ EATX Motherboard

Specifications

• Mfr Part Number: X10DRH-ILN4-O
• CPU: Dual LGA2011
  • Support Intel Xeon E5-2600 v3 Series Processors
  • Support up to 18 Cores
  • Cache up to 45MB
  • QPI up to 9.6 GT/s
  • Support up to 145W TDP
• Chipset: Intel C612
• Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/Registered Memory
• Slots: 2x PCI-Express 3.0 x16 Slots, 5x PCI-Express 3.0 x8 Slots (one runs at x4)
• SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
• Video: Integrated Aspeed AST2400 BMC Graphics
• LAN: Intel i350 Quad Port Gigabit Ethernet Controller
• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 ports (4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: EATX, 12.0 x 13.0 inch / 30.5 x 33.2 cm
• RoHS Compliant
