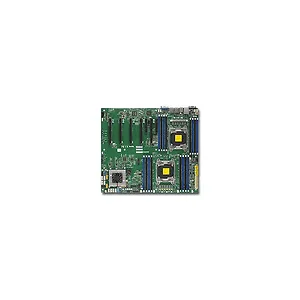

MBD-X10DRG-Q-B - Supermicro X10DRG-Q-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ A&V&2GbE/ Proprietary Server Mother

Form Factor
Proprietary

Processor/Cache
CPU
Intel Xeon processor E5-2600 v3 family (up to 160W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s
Note
Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory
Memory Capacity
16x 288-pin DDR4 DIMM sockets
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) On-Board Devices
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC Input / Output
SATA
10x SATA3 (6Gbps) ports
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
5x USB 3.0 ports (2 rear, 2 via header, 1 Type A)
4x USB 2.0 ports (2 rear, 2 via headers)
Audio
7.1 HD Audio with optical S/PDIF
Video
1x VGA port
Serial Port / Header
2x COM ports (1 rear, 1 Header)
DOM
2x SuperDOM (Disk on Module) ports
TPM
1x TPM 1.2 20-pin Header

Thunderbolt
Thunderbolt AOC Header Expansion Slots
PCI-Express
4x PCI-E 3.0 x16 (double-width) slots
2x PCI-E 3.0 x8 (1 in x16) slots
1x PCI-E 2.0 x4 (in x8) slot
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.) System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
BIOS rescue hot keys
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1 Management
Software
Intel Node Manager
SuperDoctor 5
IPMI 2.0
NMI
SPM
SUM
Watch Dog
Power Configurations
ACPI / APM Power Management
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery PC Health Monitoring
Voltage
Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages.
5+1 Phase-switching voltage regulator
FAN
10x 4-pin fan headers (up to 10 fans)
10x fans with tachometer monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 8x Fan Connectors
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID
Other Features
Chassis intrusion detection
Chassis intrusion header
SDDC Support
RoHS
Dual Cooling Zones Weight:
3 lb

Warranty Information:
1 Year
