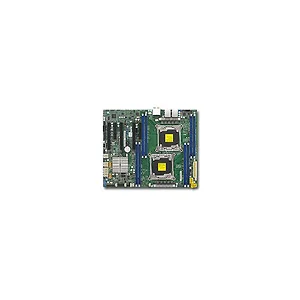

Supermicro MBD-X10DAL-I-B X10DAL-I-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ A&2GbE/ ATX Server Motherboard

Form Factor
ATX

Processor/Cache
CPU:
Intel Xeon processor E5-2600 v3 family (up to 160W TDP )
Dual Socket R3 (LGA 2011)

Cores / Cache:Up to 18 Cores / Up to 45MB Cache
System Bus:QPI up to 9.6 GT/s

Note: Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory
Memory Capacity:8x 288-pin DDR4 DIMM slots
Up to 512GB ECC LRDIMM, 256GB ECC RDIMM

Memory Type:2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes:RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB

Memory Voltage:1.2 V
Error Detection:Corrects single-bit errors On-Board Devices
Chipset:Intel C612 Express chipset
AHCI SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10
SCU SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10

Network Controllers:
Intel i210 Dual Port Gigabit Ethernet
Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio:RealTek ALC888 7.1 High Definition Audio with S/PDIF header Input / Output
SATA:10x SATA3 (6Gbps) ports
LAN:2x RJ45 Gigabit Ethernet LAN ports

USB:
6x USB 3.0 ports (4 rear + 2 via header)
3x USB 2.0 ports (2 via header + 1 Type A)

Audio:7.1 HD Audio with optical S/PDIF
Serial Port / Header:1x COM Port (1 header)
DOM:2x SuperDOM (Disk on Module) ports
TPM:1x TPM 1.2 20-pin Header Expansion Slots
PCI-Express:
2x PCI-E 3.0 x16
1x PCI-E 3.0 x8 (in x16)
1x PCI-E 3.0 x4 (in x8)
1x PCI-E 2.0 x4 (in x8)

System BIOS
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features:
Plug and Play (PnP)
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1 Management
Software:
SuperDoctor 5
Watch Dog

Power Configurations:
ACPI Power Management
Power-on mode for AC power recovery PC Health Monitoring
Voltage:
Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
5 Phase-switching voltage regulator

FAN:
7x 4-pin fan headers (up to 6 fans)
7x fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors Temperature:
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 7x Fan Connectors
Thermal Monitor 2 (TM2) support
PECI

LED:CPU / System Overheat LED

Other Features:
Chassis intrusion detection
Chassis intrusion header
SDDC Support
RoHS Weight:
3 lb

Warranty Information:
1 Year
