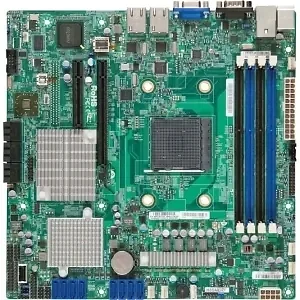

MBD-H8SML-IF-O - Supermicro MB -H8SML-IF-SINGLE

Physical Stats
Form Factor
Micro ATX Processor/Chipset
CPU
Single 942-pin Socket AM3+
Supports up to Single 8/4-Core ready AMD Opteron^TM 3000 Series processor
HT3.0 Link support
Chipset
AMD chipset SR5650 / SP5100
System Memory
Memory Capacity
Supports up to 32GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 4 DIMMs
Single or Dual (recommended) channel memory
Memory Type
DDR3 1600/1333/1066MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
8GB, 4GB, 2GB, 1GB
Memory Voltage
1.5V, 1.35V
On-Board Devices
SATA
AMD SP5100 RAID 0, 1, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
Winbond WPCM450 BMC
Network Controllers
Intel 82574L single-port Gigabit Ethernet, 10/100/1000Base-T support
VGA
Matrox G200eW 16MB DDR2 graphics
Super I/O
Winbond W83527HG chip
Input / Output
SATA
6x SATA2.0 (3Gb/s) Ports
USB
7x USB 2.0 ports (2x rear / 2x header - 4 ports / 1x type A)
VGA
1 VGA port
Serial Ports
2 Fast UART 16550 serial ports
1 header and 1 port
IPMI
1x dedicated IPMI LAN port
Chassis ( Optimized for H8SML-iF )
1U Chassis
CSE-512F-350B CSE-813MT-350CB CSE-813MTQ-350C CSE-813MTQ-R400CB Expansion Slots
PCI-Express
1 PCI-E 2.0 x8 (in x16 slot) 1 PCI-E 2.0 x4 (in x8 slot) 1 PCI-E 2.0 x8 System BIOS
BIOS Type
16Mb SPI Flash ROM with AMI BIOS
BIOS Features
Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 2.0 USB Keyboard Support SMBIOS 2.3 Management
Software
IPMI (Intelligent Platform Management Interface) 2.0
Super Doctor III
Power Configurations
ACPI Power Management
Wake-On-LAN (WOL) header
Keyboard Wakeup from Soft-Off
Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, 12V, +3.3V Standby, -12V Standby, VBAT, HT, memory, chipset
CPU switching voltage regulator
FAN
Up to 5-fan status tachometer monitoring
Up to five 4-pin fan headers
Status monitor for speed control
3-pin fan support (w/o speed control)
Low noise fan speed control
(4-pin fan only)
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 9x fan connectors
I²C Temperature Sensing Logic
LED
CPU / System Overheat LED
+5V Standby Alert LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
Operating Environment / Compliance
RoHS
RoHS Compliant 6/6, Pb Free
Environmental Specifications
Operating Temperature: 10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Regulatory
FCC
Passed to meet FCC standard requirement
Weight
5.00 LB
Warranty Information
1 year
