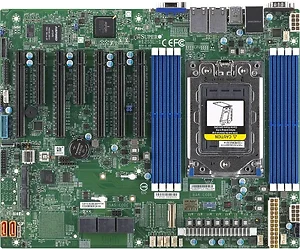

Supermicro MBD-H12SSL-I-B MB MBD-H12SSL-i-B AMD EPYC 7002 SP3 2T DDR4 PXIE SATA ATX Bulk Pack

Physical Stats
Form Factor
ATX

Processor/Chipset
CPU
Single AMD EPYC^TM 7002 series Processor
Socket SP3
Cores
Up to 64 Cores
Chipset
System on Chip

System Memory
Memory Capacity
8 DIMM slots
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
Memory Type
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
Dual gigabit LAN via Broadcom BCM5720
1 Realtek RTL8211F PHY (dedicated IPMI)
VGA
ASPEED AST2500 BMC

Input / Output
SATA
8 SATA3 (6 Gbps) ports
SATA/NVMe Hybrid
8 SATA3 or 2 NVMe via single SlimSAS x8
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 3.0 ports
(4 rear + 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connectors
1 TPM 2.0 header

Expansion Slots
PCI-Express
5 PCI-E 4.0 x16
2 PCI-E 4.0 x8
M.2
Interface: 2 PCI-E 4.0 x4
Form factor: 2280, 22110
Key: M-key

System BIOS
BIOS Type
AMI 256Mb SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1

Management
Software
Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations
ACPI Power Management
Power-on mode control for AC power loss recovery

PC Health Monitoring
CPU
Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby
CPU switching voltage regulator
Supports system management utility
VBAT
FAN
Up to 7-fan status tachometer monitoring
Up to 7 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 7x Fan connectors
I²C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
UID

Operating Environment / Compliance
Environmental Specifications
Operating Temperature:
10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature:
-40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Weight
3.00 lb

Warranty Information
1 Year
