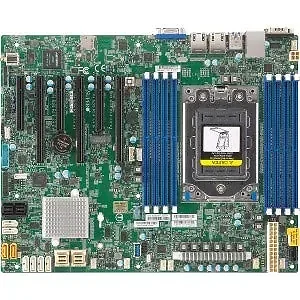

Supermicro MBD-H11SSL-NC-B Motherboard MBD-H11SSL-NC-B AMD EPYC 7000 SATA PCIE ATX Bulk

Physical Stats
Form Factor: ATX Processor/Chipset
CPU: Single AMD EPYC 7000-series Processor
Socket SP3
Chipset: System on Chip System Memory
Memory Capacity:
8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
8-channel memory bus
Memory Type: DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes: 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage: 1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory) On-Board Devices
SATA: SATA3 (6 Gbps)
SAS:
Broadcom 3008 SAS3 (12 Gbps) controller
RAID 0, 1, 10
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers:
2 1GbE LAN via Intel I210
1 Realtek RTL8211E PHY (dedicated IPMI)
VGA: ASPEED AST2500 BMC Input / Output
SAS: 8 SAS3 (12 Gbps) ports
SATA: 8 SATA3 (6 Gbps) ports
NVMe: 2 PCI-E 3.0 NVMe x4 Internal Ports
LAN:
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB:
5 USB 3.0 ports
(2 rear, + 2 via header + 1 Type A)
4 USB 2.0 ports (2 rear + 2 via header)
VGA: 1 VGA port
Others:
1 COM port (rear)
2 SATA DOM power connector
1 TPM 1.2 header Expansion Slots
PCI-Express:
3 PCI-E 3.0 x8
3 PCI-E 3.0 x16
M.2
Interface: PCI-E 3.0 x4
Form factor: 2260, 2280, 22110
Support SATA devices Chassis ( Optimized for H11SSL-NC )
1U:
SC512F-350B1
SC515-350
SC813MFTQC-350CB2
SC813MFTQC-R407CB
2U:
SC213AC-R1K23LPB
SC216BE1C4-R1K23LPB
SC825TQC-R1K03LPB
SC826BE1C4-R1K23LPB
3U: SC836BE1C-R1K23B
4U/Tower: SC846BE1C-R1K23B System BIOS
BIOS Type: AMI 128Mb SPI Flash EEPROM
BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1 Management
Software:
Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations:
ACPI Power Management
Power-on mode control for AC power loss recovery PC Health Monitoring
CPU:
Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
CPU switching voltage regulator
Supports system management utility
VBAT
FAN:
Up to 7-fan status tachometer monitoring
Up to 7 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 7x Fan connectors
I²C Temperature Sensing Logic
LED: CPU / System Overheat LED
Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header
UID Operating Environment / Compliance
Environmental Specifications:
Operating Temperature: 10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension (L"xW"xH")
12 x 10 x 2

Weight
3 lbs

Warranty Information
1 Year
