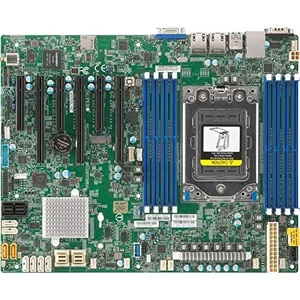

MBD-H11SSL-C-B - Supermicro Motherboard MBD-H11SSL-C-B AMD EPYC 7000 SATA PCI Express ATX Bulk

Form Factor
ATX Processor/Chipset
CPU:
- Single AMD EPYC 7000-series Processor
- Socket SP3
Cores: Up to 32 Cores
Chipset: System on Chip System Memory
Memory Capacity:
- 8 DIMM slots
- Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
- 8-channel memory bus
Memory Type: DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes: 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage: 1.2V
Error Detection:
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory) On-Board Devices
SATA: SATA3 (6 Gbps)
SAS:
- Broadcom 3008 SAS3 (12 Gbps) controller
- RAID 0, 1, 10
IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers:
- 2 1GbE LAN via Intel I210
- 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA: ASPEED AST2500 BMC Input / Output
SAS: 8 SAS3 (12 Gbps) ports
SATA: 8 SATA3 (6 Gbps) ports
LAN:
- 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB:
- 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
- 4 USB 2.0 ports (2 rear + 2 via header)
VGA: 1 VGA port
Others:
- 1 COM port (rear)
- 2 SATA DOM power connector
- 1 TPM 1.2 header Expansion Slots
PCI-Express:
- 3 PCI-E 3.0 x8
- 3 PCI-E 3.0 x16
M.2:
- Interface: PCI-E 3.0 x4
- Form factor: 2260, 2280, 22110 Chassis ( Optimized for H11SSL-C )
1U:
- SC512F-350B1
- SC515-350
- SC813MFTQC-350CB2
- SC813MFTQC-R407CB
2U:
- SC213AC-R1K23LPB
- SC216BE1C4-R1K23LPB
- SC825TQC-R1K03LPB
- SC826BE1C4-R1K23LPB
3U: SC836BE1C-R1K23B
4U/Tower: SC846BE1C-R1K23B System BIOS
BIOS Type: AMI 128Mb SPI Flash EEPROM
BIOS Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 5.1
- USB Keyboard Support
- SMBIOS 3.1.1 Management
Software:
- Super Doctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations:
- ACPI Power Management
- Power-on mode control for AC power loss recovery PC Health Monitoring
CPU:
- Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
- CPU switching voltage regulator
- Supports system management utility
- VBAT
FAN:
- Up to 7-fan status tachometer monitoring
- Up to 7 4-pin fan headers
- Dual Cooling Zone
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature:
- Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 7x Fan connectors
- IC Temperature Sensing Logic
LED: CPU / System Overheat LED
Other Features:
- Chassis Intrusion Detection
- Chassis Intrusion Header
- UID Operating Environment / Compliance
Environmental Specifications:
- Operating Temperature: 10^oC to 35^oC (50^oF to 95^oF)
- Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension ( L inch x W inch x H inch)
NA Weight
5.00 lb Warranty Information
1 Year
