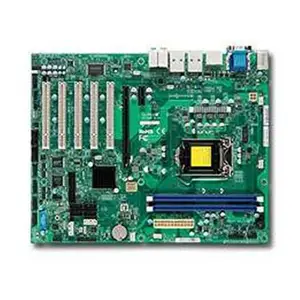

MBD-C7H61-B - Supermicro Motherboard MBD-C7H61-B Intel Core i7/i5/i3 LGA1155 DDR3 PCI Express SATA USB3.0 ATX Brown Box

Form Factor
ATX

Processor/Cache
CPU
Socket H2 (LGA 1155)
Intel 2nd and 3rd Generation Core i7/i5/i3, Pentium, Celeron processors supported System Memory
Memory Capacity
2x 240-pin DDR3 DIMM sockets
Supports up to 16 GB DDR3 non-ECC Un-Buffered memory (UDIMM)
1600MHz
Support non-ECC DDR3 UDIMM only
Memory Type
Unbuffered DDR3 SDRAM 64-bit, 240-pin gold-plated DIMMs
DIMM Sizes
8GB, 4GB, 2GB
Memory Voltage
1.5V or 1.35V On-Board Devices
Chipset
Intel H61 Express chipset
SATA
SATA 3.0 (6Gb/s) and SATA 2.0 (3Gb/s)
Network Controllers
Intel 82579V and 82574L Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
REALTEK ALC888S-VD2 HD Audio
Super I/O
Nuvuton NCT6776F and NCT6106D (6 COM ports) Input / Output
Serial ATA
4x SATA 2.0 ports
2x SATA 3.0 ports
LAN
2x RJ45 LAN ports
USB
2x USB 3.0 ports (header)
10x USB 2.0 ports
(6 rear, 4 via headers)
Audio
Line-in / Line-out / Microphone Ports
optical S/PDIF port, Front Panel Header
DOM (Disk on Module)
DOM power connector support
Serial Port / Headers
8x COM ports(6 x RS-232, 2xRS232/485/422)
Others
VGA + DP + HDMI ports
LPT header Expansion Slots
PCI-Express
1x (x16) PCI-E 3.0
1x (x1) PCI-E 2.0
PCI
5x 32-bit PCI slots (5V Key) System BIOS
BIOS Type
64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0
USB Keyboard support
RTC (Real time Clock) Wakeup
3TB HDD Support Management
Software
SuperDoctor III
Watch Dog
Power Configurations
ACPI / ACPM Power Management
Main Switch Override Mechanism
Wake-On-LAN (WOL) header
Wake-On-Ring (WOR) header
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery PC Health Monitoring
Voltage
Monitors for CPU Cores, +1.8V, +3.3V, +5V, 12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
Digital 4+2 Phases auto sensing voltage regulator for CPU and Integrated Graphics Processor
FAN
Total of 4 fan headers supporting up to 4 fans
4x fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Support 3-pin fans (w/o speed control)
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Adaptive Thermal Monitor support
PECI 3.0
LED
CPU / System Overheat LED
Standby alert LED
Other Features
Chassis intrusion detection
Chassis intrusion header
eUSB standoff Item Dimension (L"xW"xH"):
12 x 9.6 x 1

Weight:
2 lb

Warranty Information:
1 Year
