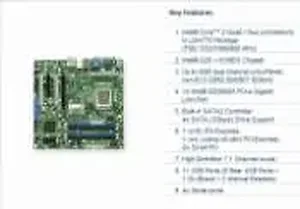

MBD-C2SBM-Q-O - Supermicro C2SBM Q O Core 2 Quad Intel Q35 DDR2 SATA2 A V GbE MINI ATX Server Motherboard

Special Order
Ships in 1-2 weeks
Condition: New

$191.46  $258.47
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

O 8GB DUAL CHANNEL UNBUFFERED,NON-ECC DDR2 800/667 SDRAM,1X INTEL 82566DM PCI-E

Technical Specifications

MATX MBD LGA775 Q35 8GB GETH 4X SATA HD SUPERMICRO C2SBM-Q - Motherboard - micro ATX - LGA775 Socket - Q35 - Gigabit LAN - onboard graphics - HD Audio (8-channel) Supermicro motherboards based on the Intel Q35 chipset support Intel's Core 2 Quad / Duo processors. Supermicro's Q35 boards are designed for embedded applications that require long life and continuous operation in high-temperature environments.


Main Specifications

Product Description SUPERMICRO C2SBM-Q - motherboard - micro ATX - LGA775 Socket - Q35
Product Type Motherboard - micro ATX
Chipset Type Intel Q35 Express / Intel ICH9DO
Processor Socket 1 x LGA775 Socket
Compatible Processors Core 2 Duo, Core 2 Quad, Pentium Dual Core, Celeron 400 sequence
Max RAM Size 8 GB
RAM Supported 4 DIMM slots - DDR2 , non-ECC , unbuffered
Storage Ports 4 x SATA
USB Ports Configuration 11 x USB
Graphics Intel GMA 3100
Audio HD Audio (8-channel)
LAN Gigabit Ethernet
Microsoft Certification Compatible with Windows 7


Extended Specifications

General
Product Type Motherboard - micro ATX
Chipset Type Intel Q35 Express / Intel ICH9DO
Max Bus Speed 1333 MHz
Processor Socket LGA775 Socket
Max Processors Qty 1
Compatible Processors Core 2 Duo, Core 2 Quad, Pentium Dual Core, Celeron 400 sequence
Supported RAM
Max Size 8 GB
Technology DDR2
Bus Clock 800 MHz, 667 MHz
Speed PC2-6400, PC2-5300
Data Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture
Graphics
Graphics Controller Intel GMA 3100
Memory Allocation Technology Dynamic Video Memory Technology 4.0
Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC883
Compliant Standards High Definition Audio
LAN
Network Controller Intel 82566DM
Network Interfaces Gigabit Ethernet
Expansion / Connectivity
Expansion Slot(s) 1 x CPU
4 x DIMM 240-pin ( 1.8 V )
1 x PCIe x16
1 x PCIe x8
2 x PCI ( 5 V )
Storage Interfaces Intel ICH9DO : SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
Intel ICH9DO : ATA-100 - connector(s): 1 x 40pin IDC - 2 device(s)
Interfaces 1 x LAN (Gigabit Ethernet)
7 x USB 2.0
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out (side surround) - mini-jack
1 x audio line-out (back surround) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x VGA
1 x PS/2 keyboard
1 x PS/2 mouse
2 x serial
Additional Connectors (Optional) 4 x Hi-Speed USB
Power Connectors 4-pin ATX12V connector, 24-pin main power connector
Features
BIOS Type Phoenix
BIOS Features ACPI 1.0 support, power failure recovery (AC loss resume), DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Sleep / Wake Up Keyboard wake up, suspend to RAM (STR), wake on LAN (WOL), wake on ring (WOR)
Hardware Features Chassis intrusion detection, Watch Dog Timer, Trusted Platform Module (TPM)
Miscellaneous
Software Included Drivers & utilities, SuperO Doctor III
Compatible with Windows 7 "Compatible with Windows 7" software and devices carry Microsofts assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards Plug and Play, ACPI, RoHS
Width 9.6 in
Depth 9.6 in

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Supermicro
  • MBD-C2SBM-Q-O
  • 672042025237
  • New
  • 4 lbs
  • 14 X 6 X 14
  • May 27, 2026
  • Mar 28, 2012
Product Identifiers: Brand: Supermicro • Part #: MBD-C2SBM-Q-O • UPC: 672042025237 • Category: Server Boards
