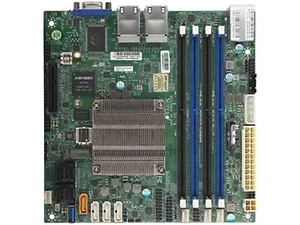

MBD-A2SDI-4C-HLN4F-B - Supermicro Motherboard MBD-A2SDI-4C-HLN4F-B Intel Atom Mini-ITX PCI Express SATA USB Brown Box

Key Features 1.Intel Atom Processor C3558, Single Socket FCBGA1310 supported, CPU TDP support 16W2.System on Chip3.Up to 256GB Registered ECC DDR4-2133MHz, Up to 64GB Unbuffered ECC/Non-ECC DDR4-2133MHz; in 4 DIMM slots4.Expansion slots: 1 PCI-E 3.0 up to x4 (in x4 slot) Flexible I/O - software configurable in BIOS setup5.M.2 Interface: PCI-E 3.0 x2 and SATA M.2 Form Factor: 2242, 2280 M.2 Key: M-Key6.4 GbE LAN ports7.Up to 8 SATA3 (6 Gbps) ports via SoC Flexible I/O - software configurable in BIOS setup8.I/O: 1 VGA, 1 COM, TPM header9.1 USB 3.0 (Type-A) 4 USB 2.0 (2 rear, 2 via headers) 10.Intel Quick Assist Technology11.Supports 12V DC power inputForm Factor Mini-ITXProcessor/Cache CPU: - Intel Atom Processor C3558. - Single Socket FCBGA1310 supported, CPU TDP support 16W Cores / Cache: 4 cores, 4 threads / 8MB cacheSystem Memory Memory Capacity : - Up to 256GB Registered ECC RDIMM and DDR4-2133MHz - Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type: 2400/2133/1866/1600MHz, (Operating speed up to 2133MHz) DIMM Sizes: 4GB, 8GB, 16GB, 32GB, 64GB Memory Voltage: 1.2V Error Detection: - Corrects single-bit errors - Detects double-bit errors (using ECC memory)On-Board Devices Chipset: System on Chip SATA: Up to 8 SATA3(6 Gbps) ports via SoC. (Number of SATA ports is configurable via BIOS setup: 4, 6, or 8. Total combined PCI-E lanes and SATA ports is up to 8.) IPMI: ASPEED AST2400 BMC Network Controllers: Quad LAN with Intel C3000 SoC 1GbE Graphics: Aspeed AST2400 BMCInput / Output LAN: 4 RJ45 Gigabit Ethernet LAN ports USB: - 4 USB 2.0 ports (2 rear + 2 headers), - 1 USB 3.0 ports ( + 1 Type A) Video Output: 1 VGA port Serial Port / Header: 1 COM Port (1 header) TPM: TPM HeaderExpansion Slots PCI-E: - 1 PCI-E 3.0 up to x4 (in x4 slot) - Number of PCI-E lane is configurable via BIOS setup: 0, 2, or 4. Total combined PCI-E lanes and SATA ports is up to 8. M.2: - Interface: PCI-E 3.0 x2 and SATA - Form Factor: M-Key 2242, 2280System BIOS BIOS Type: AMI UEFI BIOS Features: - UEFI 2.4 - SMBIOS 2.7.1Management Software: IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor 5, Watchdog Power Configurations: - ATX Power connector - +12V DC Power Input - CPU thermal trip support for processor protection - Power-on mode for AC power recoveryPC Health Monitoring Voltage: +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT FAN: 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors Temperature: CPU thermal trip support LED: UID/Remote UID Other Features: 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Innovation Engine, Intel QuickAssist Technology , M.2 NGFF connector, RoHS, SDDC, System level control, UID, WOLOperating Environment Operating Temperature Range: 0oC to 60oC (32oF to 140oF) Non-Operating Temperature Range: -40oC - 85oC (-40oF -...
