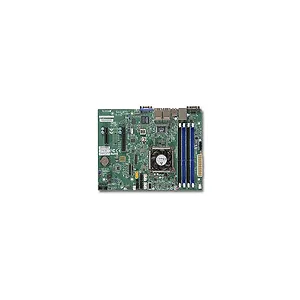

Supermicro MBD-A1SAM-2750F-O A1SAM-2750F-O Intel Atom C2750/ DDR3/ SATA3/ V&4GbE/ MicroATX Motherboard & CPU Combo

Specifications

• Mfr Part Number: A1SAM-2750F-O
• CPU (Included): Intel Atom C2750 Processor; Supports up to 20W TDP (Eight-Core)
• Chipset: System-on-Chip
• Memory: 4x 240pin DDR3-1600/1333 UDIMM Slots, ECC, Max Capacity of 64GB
• Slots: 1x PCI-Express 2.0 x8 Slot, 1x PCI-Express 2.0 x4 Slot
• SATA: 2x SATA3 Ports, 4x SATA2 Ports
• Video: Aspeed AST2400 Graphics
• LAN: SoC I354 Quad Gigabit Ethernet Controller
• Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: MicroATX, 9.6 x 7.5 inch / 24.40 x 19.05 cm
• Intel Atom C2750 is included with this motherboard.

• RoHS Complaint
