Product Overview
General InformationThe ExpressCage MB742SP-B brings dense 2.5" SSD or HDD storage to the floppy 3.5" bay. With the rising popularity of SFF (Small-Form-Factor) systems due to space-savings and lower power usage, a convenient and protective data storage enclosure is necessary to maintain the critical data stored in the system. The ExpressTray MB742TP-B drive caddy supports tool-less drive installation, and it has been designed to hold your drives securely, with an enhanced tool-less drive gripping mechanism, stabilized drive insertion design, and a strengthened single-piece latch. The new metal chassis has all-around air ventilation to keep your drives running cool all day, even under heavy load. Space Saver Utilizing the small space of the external 3.5" drive bay (floppy bay), the MB742SP-B is perfect for applications where space is limited. Small-Form-Factor (SFF) PCs, embedded systems, Box PCs, in-vehicle systems, and home servers can all benefit from this dual 2.5" SAS/SATA drive enclosure. The two drives are also in an ideal position to be used in a RAID setup when combined with a RAID card or software RAID solution. A RAID 1 setup can be used to prevent drive failure, and is excellent for sensitive data, or having a backup of your OS drive. A RAID 0 setup is ideal for applications that require high-speeds, such as in a gaming computer or photo/video editing system. Maximize your speed and security while minimizing your space footprint with MB742SP-B. Innovative New Tray Caddy Design The ExpressTray MB742TP-B in the MB742SP-B is designed for applications where drive hot-swap is required, while providing security and durability. Grips on the sides of the caddy hold your drives securely, to keep your sensitive data safe. The unique built-in screws allow for entirely tool-less drive installation and removal, to allow for quick and easy swapping of drives. In addition, for applications that require extra stability, we have provided the optional bottom screw holes so you can hold your drives even more securely. The strong, single-piece latch pops out with the press of a button, making it easy to remove your drives. The integrated drive activity light shines solid blue when powered, and flashes blue when the drive is in use, so you know when it's safe to remove your drives. Versatile Utility & Security We understand that the first priority for any storage enclosure must be security of your data. That's why the MB742SP-B uses a metal enclosure for maximum protection from bumps and drops. The heat-dissipating properties of the enclosure, combined with the amply placed ventilation holes, keep your drives running cool all day, even under heavy load. The ExpressCage MB742SP-B supports both 7-pin SATA and 15-pin SATA power cables with locking latches, so you'll never need to worry about cables unintentionally disconnecting from your enclosure. Once these cables are connected, they'll lock into place and stay that way.Technical InformationNumber of Hard Drives Supported: 2Number of Hard Drives Installed: NoNumber of Solid State Drive Supported: 2Number of Solid State Drive Installed: NoI/O ExpansionsNumber of Total Expansion Bays: 2Number of 2.5" Bays: 2Network & CommunicationWireless LAN: NoInterfaces/PortsHost Interface: Serial ATA/600Physical CharacteristicsColor: BlackMaterial: PlasticMaterial: MetalForm Factor: InternalCompatible Drive Bay Width: 3.5"Height: 1"Width: 4"Depth: 5.4"Weight (Approximate): 10.23 oz
Expert Overview

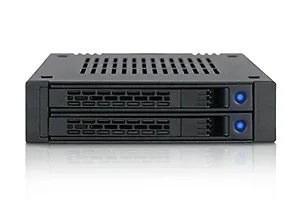

The Icy Dock ExpressCage MB742SP-B is a mobile rack designed to house two 2.5-inch SAS or SATA SSDs/HDDs within a single external 3.5-inch drive bay. This unit is suitable for IT professionals and businesses utilizing Small-Form-Factor (SFF) systems, embedded systems, Box PCs, in-vehicle systems, or home servers where space optimization is critical. It addresses the need for dense, convenient, and protective storage in environments with limited physical space. The metal chassis provides durability and features all-around air ventilation to manage drive temperatures under operational loads. The ExpressTray MB742TP-B caddies facilitate tool-less drive installation and removal, supporting hot-swap functionality. It also includes integrated drive activity LEDs and secure locking latches for SATA data and power cables, ensuring stable connections. This enclosure allows for potential RAID configurations when paired with a compatible RAID card or software solution.
Technical Specifications
Product Name
2 x 2.5" SAS/SATA SSD/HDD Mobile Rack for External 3.5" Bay Model Number
MB742SP-B Color
Black Support Drive Size
2.5" SSD / HDD Compatible Drive Type
SATA / SAS (SAS host required / Single channel) Number of Drives
2 Max Drive Height
9.5mm Drive Bay
1 x external 3.5" drive bay Host Interface
2 x SATA 7pin Power Input
1 x 15 pin SATA power connector Transfer Rate
Up to 6Gbps (Depending on hard drive speed) Support HDD Capacity
No Limitation Structure / Material
Metal with partial plastic Support Hot-Swap
Yes Drive Activity LED Indication
Drive power: solid blue HDD access: flashing blue Package contents
1 - Device, 1 - user manual, 10 - screws SATA Connector Insertion Rate
10,000 Humidity
5%-65% RH Operating Temperature
0oC to 60oC (32oF to 140oF) Storage Temperature
-35oC to 70oC (-31oF to 158oF)
Frequently Asked Questions
What drive types are compatible with this enclosure?
The Icy Dock ExpressCage MB742SP-B supports both 2.5-inch SATA and SAS SSDs or HDDs. For SAS drives, a SAS host is required, and it operates as a single-channel connection.
What is included in the package?
The package contents include one MB742SP-B device, a user manual, and ten screws for installation.
What is the maximum drive height supported?
This enclosure is designed to accommodate 2.5-inch drives with a maximum height of 9.5mm.
Can drives be hot-swapped with this device?
Yes, the Icy Dock ExpressCage MB742SP-B supports hot-swap functionality for drives, allowing for quick installation and removal while the system is running.
