7 Available
Condition: New
ICY DOCK 4 Bay 2.5 SAS & SATA SSD/HDD & (Ultra) Slim Optical Disk Drive CD DVD ROM Backplane Cage Enclosure | ToughArmor

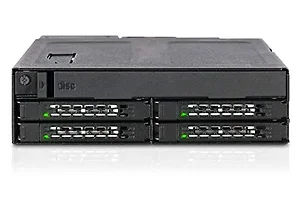

The Icy Dock ToughArmor MB604SPO-B is a drive enclosure designed for integrating multiple storage devices into a single external 5.25" drive bay. It accommodates four 2.5" SAS or SATA SSDs/HDDs, each up to 9.5mm in height, alongside one Ultra Slim (9.5mm) or Slim (12.7mm) optical disk drive (ODD). This unit is suitable for IT professionals and system integrators who need to consolidate storage and optical drive capabilities within space-constrained systems, such as small form factor servers, industrial PCs, or workstations. It addresses the challenge of maximizing storage density while retaining ODD functionality in systems with limited drive bays. The enclosure features a metal structure for durability, a 40mm cooling fan, and supports hot-swap functionality for drives. Connectivity is managed via five SATA 7-pin host interfaces and two SATA 15-pin power connectors, supporting transfer rates up to 6Gbps.
Product Name :
4 x 2.5" SAS/SATA SSD/HDD and (Ultra) Slim ODD Backplane Cage for External 5.25" Bay Color :
Black Support Drive Size :
4 x 2.5" SSD / HDD and 1 x Ultra Slim or Slim ODD Compatible Drive Type :
SATA / SAS (SAS host required / single channel) Number of Drives :
4 Max Drive Height :
4 x 2.5" up to 9.5mm
1 x Ultra Slim ODD (9.5mm) / Slim ODD (12.7mm)
Drive Bay :
1 x external 5.25" drive bay Host Interface :
5 x SATA 7pin Power Input :
2 x SATA 15pin power connector Transfer Rate :
Up to 6Gbps (Depending on hard drive speed) Support HDD Capacity :
No Limitation Drive Cooling :
1 x 40mm fan Structure / Material :
Metal Support Hot-Swap :
Yes Drive Activity LED Indication :
Drive power: solid green LED HDD access: flashing green LED Package contents :
device, user manual, screws, EVA foam spacer SATA Connector Insertion Rate :
10,000 Humidity :
5% to 65% RH Operating Temperature :
0oC to 60oC (32oF to 140oF) Storage Temperature :
-35oC to 70oC (-31oF to 158oF)
This enclosure is compatible with 2.5" SAS and SATA SSDs/HDDs. It also supports one Ultra Slim (9.5mm) or Slim (12.7mm) optical disk drive (ODD).
The package contents include the device itself, a user manual, necessary screws, and an EVA foam spacer.
The enclosure supports a transfer rate of up to 6Gbps, which is dependent on the speed capabilities of the installed hard drives.
Yes, the Icy Dock ToughArmor MB604SPO-B enclosure is designed to support hot-swap functionality for the installed drives.
MB604SPO-B - Icy Dock 4 Bay 2.5 SAS & SATA SSD/HDD & (Ultra) Slim Optical Disk Drive CD DVD ROM Backplane Cage Enclosure
