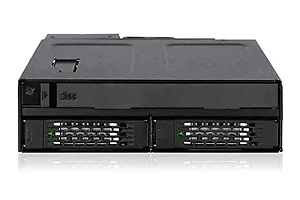

The Icy Dock MB602SPO-B is a drive enclosure designed for integrating two 2.5" SAS/SATA SSDs or HDDs and one ultra-slim or slim optical disc drive (ODD) into a single external 5.25" drive bay. This unit is suitable for IT professionals and system integrators who need to maximize storage and optical drive functionality within a compact footprint, particularly in workstations, servers, or industrial PCs with limited bay availability. It addresses the challenge of consolidating multiple drive types into a standard bay, providing hot-swap capability for the 2.5" drives. The enclosure supports 2.5" drives up to 15mm in height and ODDs of 9.5mm or 12.7mm. Constructed from metal, it includes a 40mm fan for drive cooling and features individual drive activity LEDs. Host connectivity is managed via three SATA 7-pin interfaces, with power supplied by two SATA 15-pin connectors, supporting transfer rates up to 6Gbps.
Product Name :
2 x 2.5" SAS/SATA SSD/HDD and (Ultra) Slim ODD Backplane Cage for External 5.25" Bay Color :
Black Support Drive Size :
2 x 2.5" SSD / HDD and 1 x Ultra Slim or Slim ODD Compatible Drive Type :
SATA / SAS (SAS host required / single channel) Number of Drives :
2 Max Drive Height :
2 x 2.5" up to 15mm
1 x Ultra Slim ODD (9.5mm) / Slim ODD (12.7mm)
Drive Bay :
1 x external 5.25" drive bay Host Interface :
3 x SATA 7pin Power Input :
2 x SATA 15pin power connector Transfer Rate :
Up to 6Gbps (Depending on hard drive speed) Support HDD Capacity :
No Limitation Drive Cooling :
1 x 40mm fan Structure / Material :
Metal Support Hot-Swap :
Yes Drive Activity LED Indication :
Drive power: solid green LED HDD access: flashing green LED Package contents :
device, user manual, screws, EVA foam spacer SATA Connector Insertion Rate :
10,000 Humidity :
5% to 65% RH Operating Temperature :
0oC to 60oC (32oF to 140oF) Storage Temperature :
-35oC to 70oC (-31oF to 158oF)
This enclosure is compatible with two 2.5" SAS/SATA SSDs or HDDs, and one ultra-slim (9.5mm) or slim (12.7mm) optical disc drive (ODD). For SAS drives, a SAS host is required, and it supports single-channel operation.
The package contents include the device itself, a user manual, necessary screws for installation, and an EVA foam spacer.
The enclosure supports two 2.5" SSDs or HDDs with a maximum height of up to 15mm each.
Yes, the Icy Dock MB602SPO-B enclosure supports hot-swap functionality for the installed drives.
MB602SPO-B - Icy Dock 2 x 2.5" SAS/SATA SSD/HDD
