Condition: New
ExpressCage / flexiDOCK (MB522SP-B)

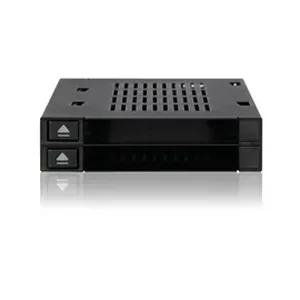

The Icy Dock FlexiDock DualBay 2.5" to 3.5" adapter, part number MB522SP-B, is designed for integrating two 2.5" SAS (single channel) or SATA HDDs/SSDs into a single external 3.5" drive bay. This device supports drives up to 9.5mm in height and offers hot-swap functionality. It connects via two SATA 7-pin host interfaces and a single SATA 15-pin power connection, supporting transfer rates up to 6Gb/sec. Constructed with a metal body and partial plastic components, it provides a practical solution for IT professionals or system builders needing to consolidate smaller drives into standard 3.5" bays, optimizing space and connectivity within server or workstation chassis. The adapter addresses the challenge of utilizing existing 3.5" bays for 2.5" form factor storage.
Color
Black Drive Fit
2 x 2.5" SAS (Single channel) / SATA HDD / SSD Support Drive Height
Up to 9.5mm drive height Device Fit
1 x external 3.5" drive bay Host Interface
2 x SATA 7-pin Power Input
1 x SATA 15-pin power connection Transfer Rate
Up to 6Gb/sec (Depending on hard drive speed) Insert and Extract Connection via
Direct SATA hard drive connection LED Indiciator: Power (Solid blue)
HDD access (Flashing Blue) Hot-Swap Function
Yes Material
Metal body with partial plastic Package contents
Device, user manual, screws Item Dimension (L inchxW inchxH inch)
4 x 1 x 6
Weight
1.00 lb
Warranty Information
3 Years
This device is compatible with two 2.5" SAS (single channel) or SATA HDDs/SSDs. It supports drives with a height of up to 9.5mm.
The package contents include the device itself, a user manual, and screws for installation.
The device is designed to fit into one external 3.5" drive bay.
The device supports a transfer rate of up to 6Gb/sec, which is dependent on the speed of the hard drives used.
MB522SP-B - Icy Dock FlexiDock DualBay 2.5" to 3.5"
